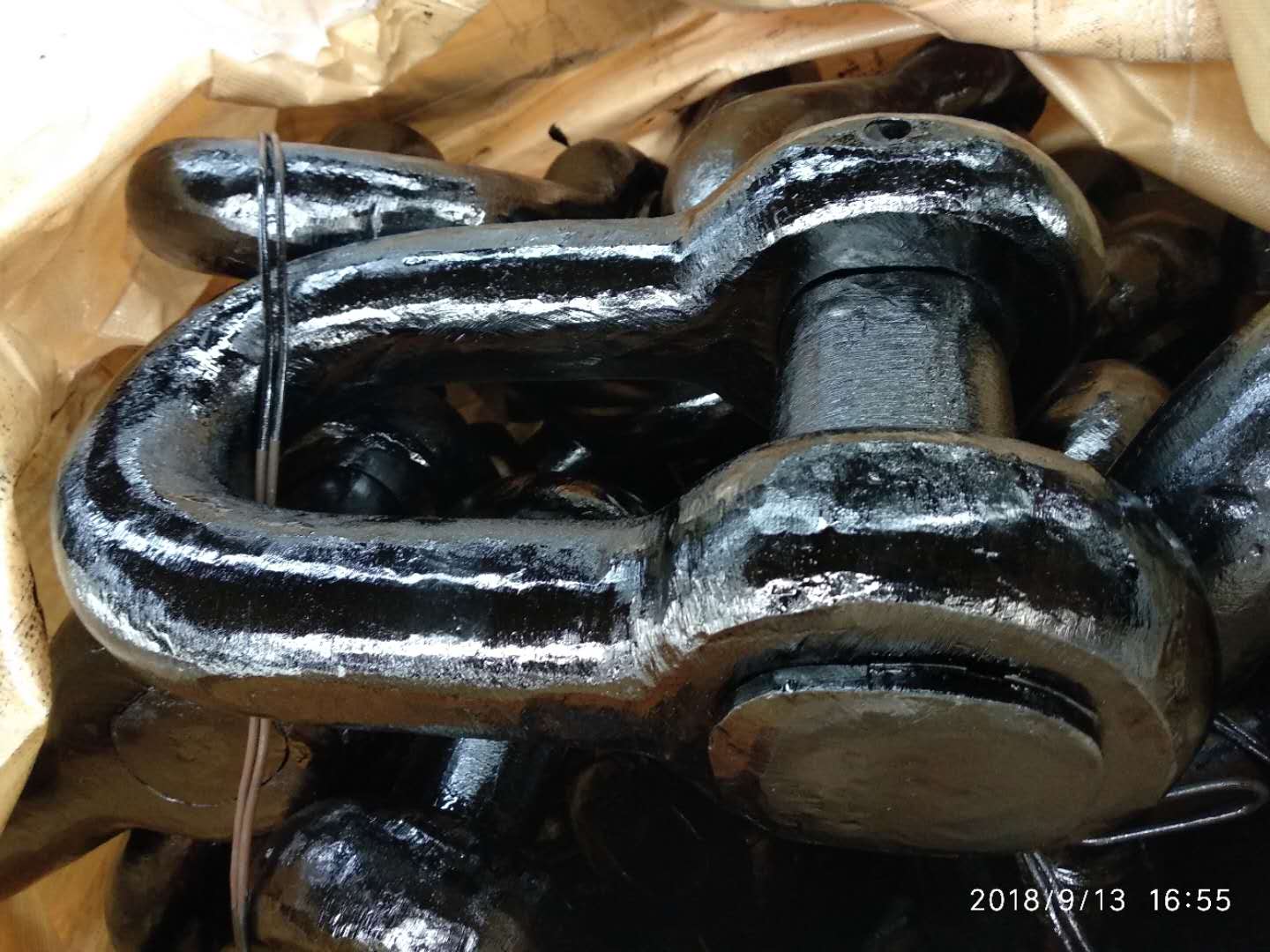

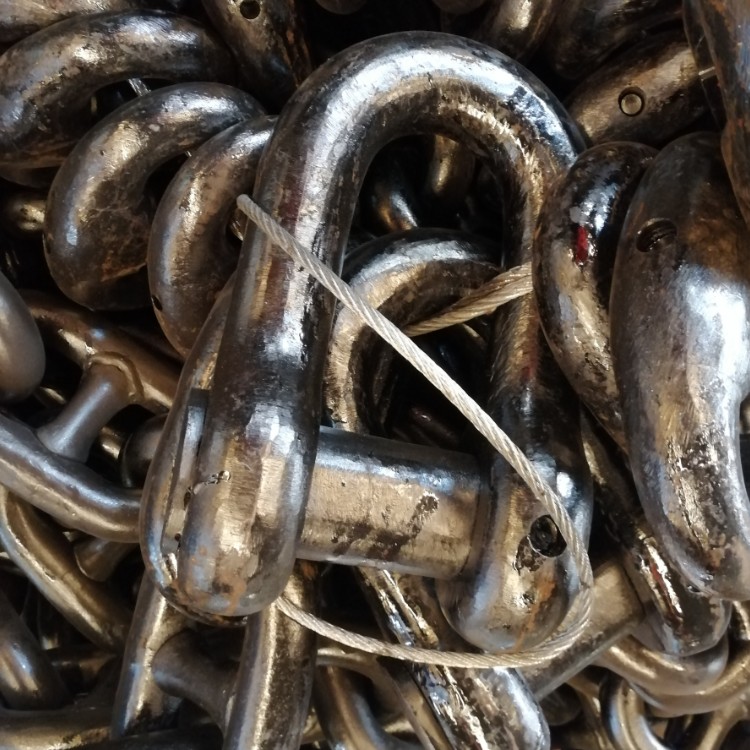

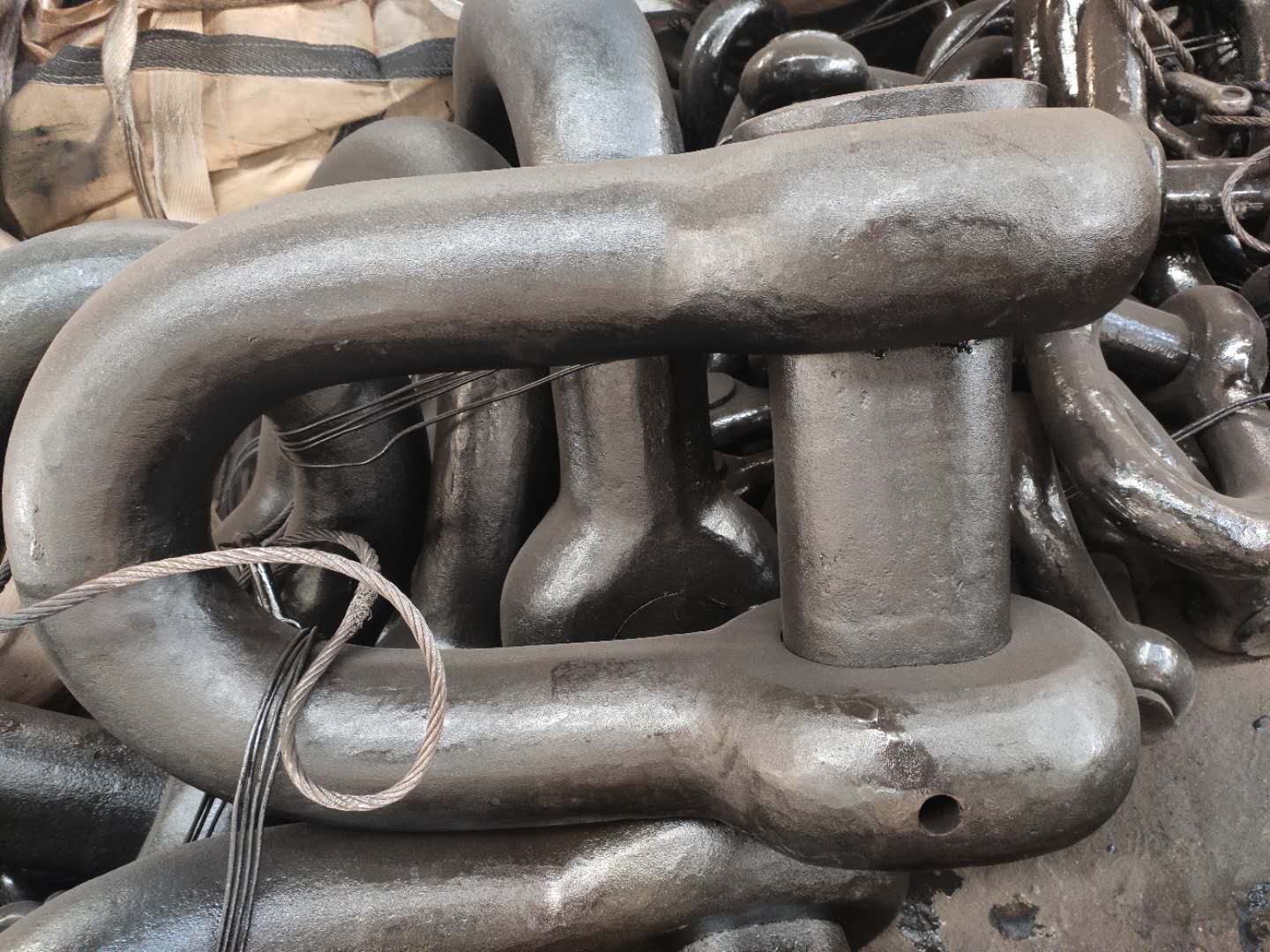

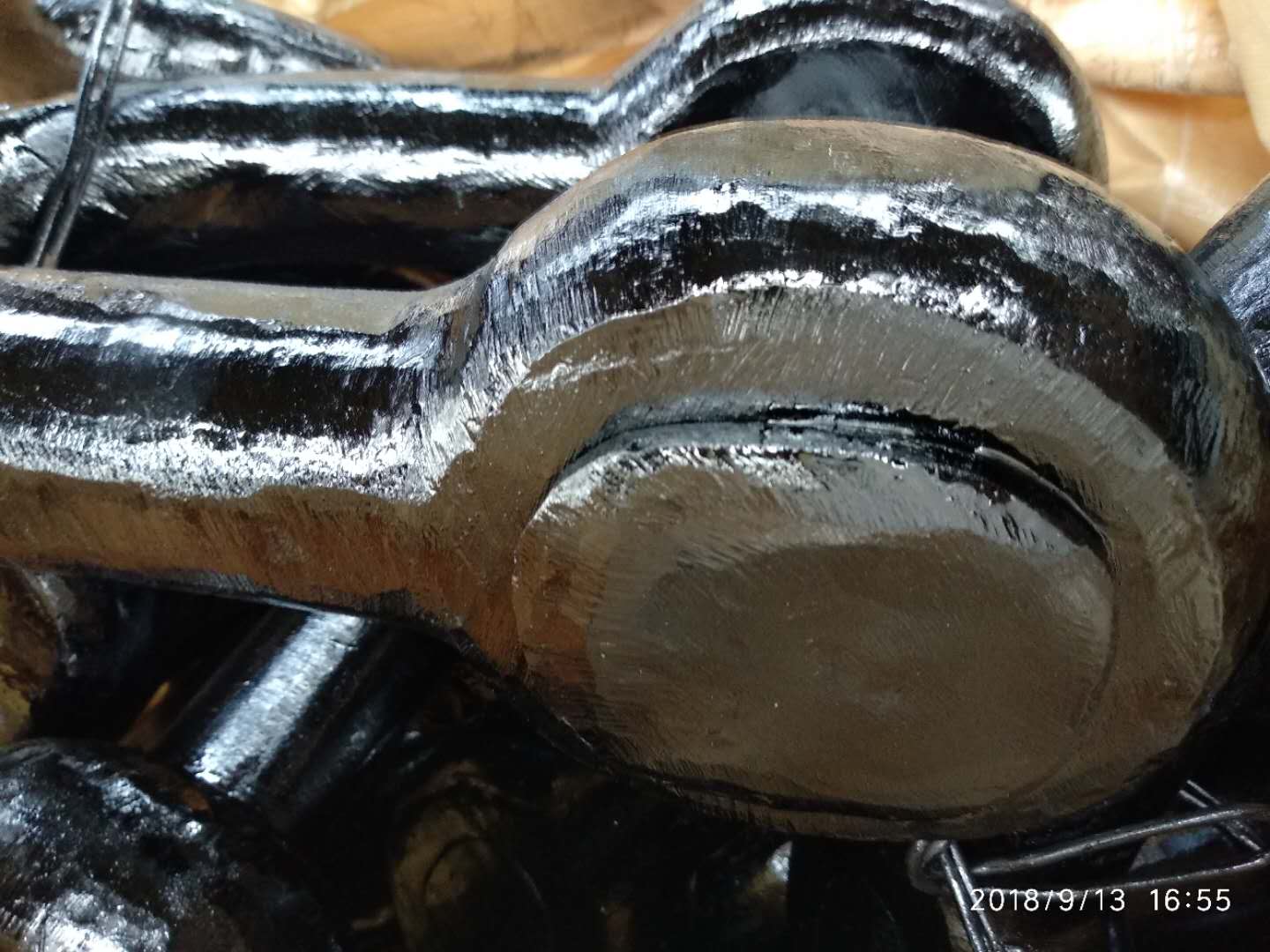

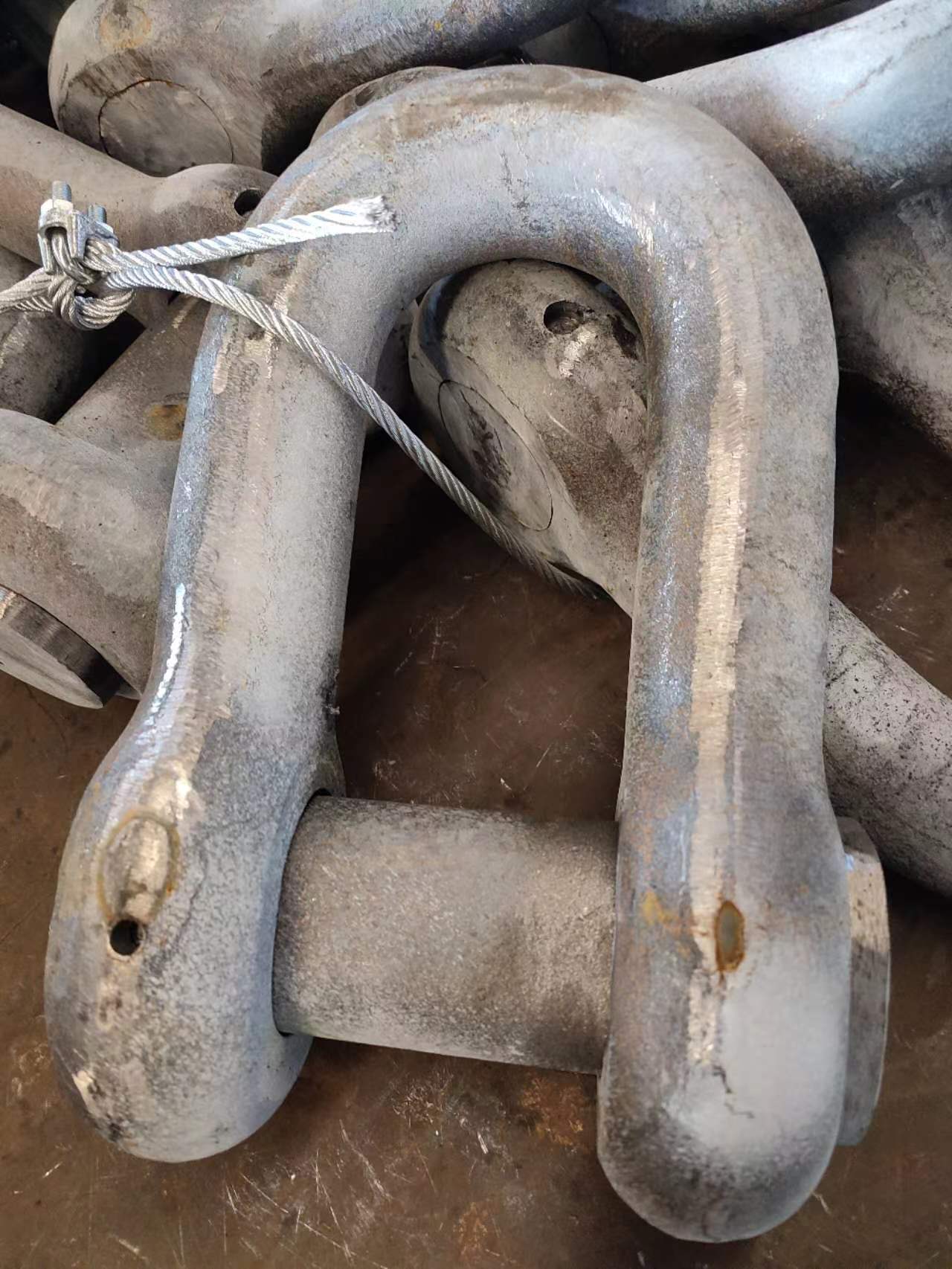

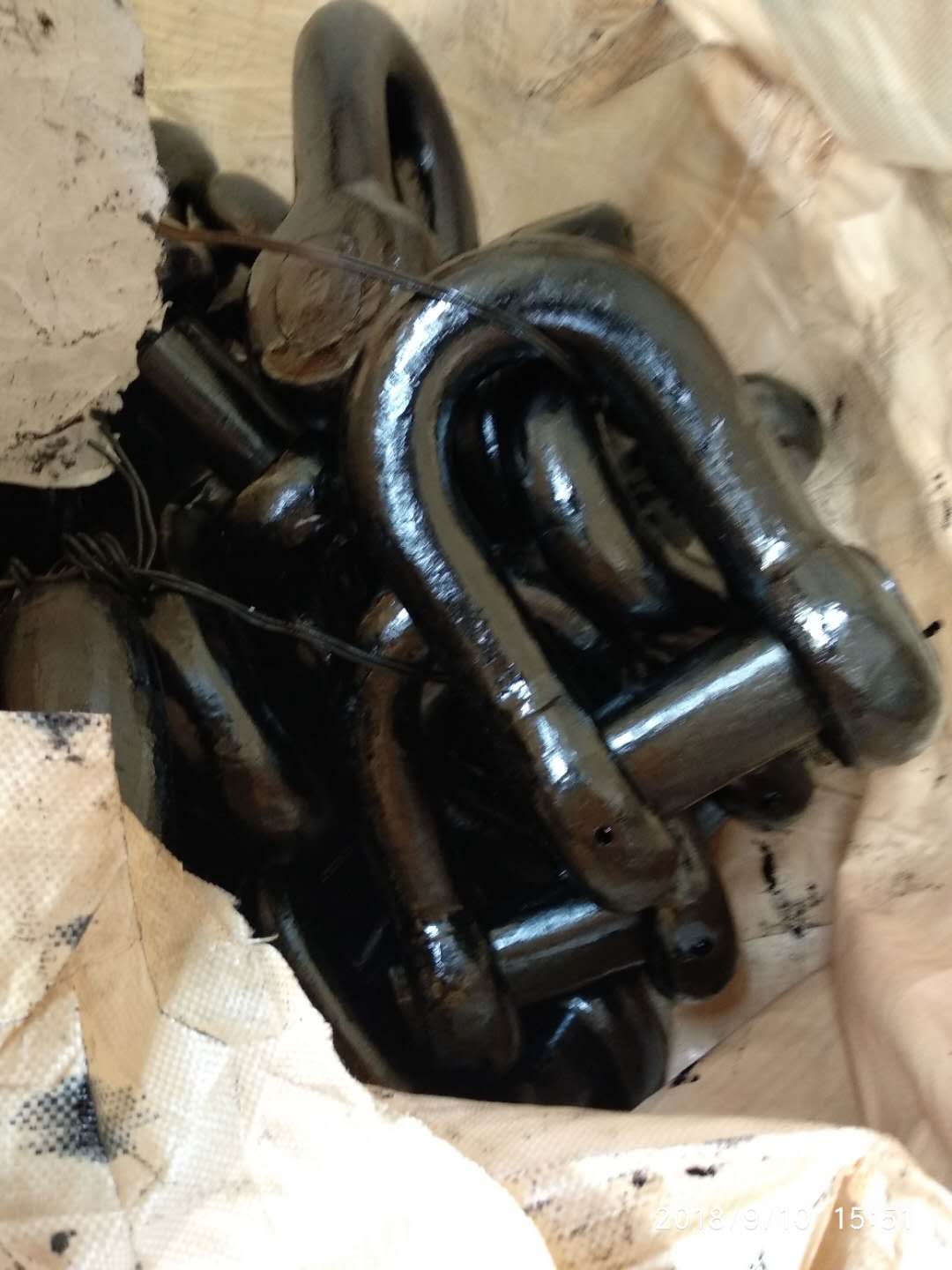

Anchor D Type End Shackle

Send Inquiry

Anchor D type end shackle for connection Swivel with Chains;
Grade 2 & 3; R3 & R4 & R5;
Material: alloy steel/carbon steel/stainless steel
Surface finishing: black painting/hot dip galvanized/electro-galvanized
Nominal Diameter: 12.5mm to 162mm
Certificate: DNV, GL, BV, LRS, ABS, IRS, RS, KR, NK, CCS

Anchor End shackle is an assembly unit of anchor chain.Its used for connection of a shot to an anchor, for shipping, marine chains for anchors.

The end shackle is a separable element designed to connect anchor cable to anchor and to chain fastening device. To provide greater strength, the pin of anchor shackle is produced of an oval section and is fixed in a shackle with a dowel pin.

Overall dimensions:

Anchor D Type End Shackle
