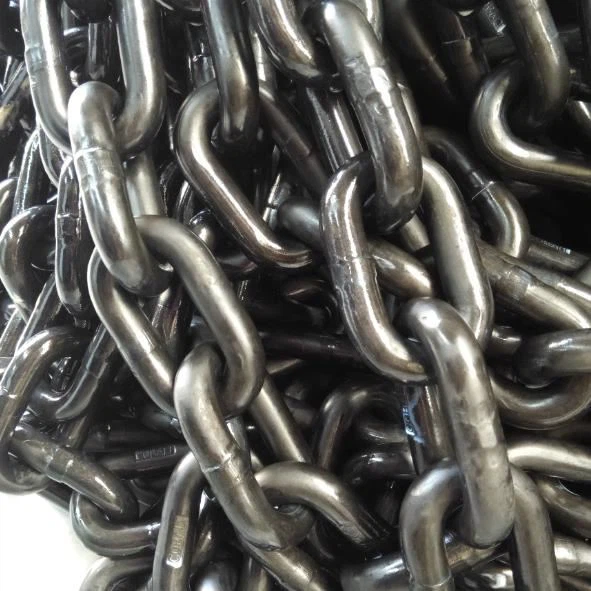

The Australia Standard welded link chain is a sort of mild steel welded link chain manufactured to meet Australian Standard.
There are three types of the chain: short link, medium link and long link.
The Australia standard link chain is suitable for all general purposes, such as engineering, industrial, agricultural and marine applications.
The chain is in a variety of protective finishes and packages.
Besides, we provide a wide range of material diameter, from 3mm to 24mm.
The chain material can be carbon steel or stainless steel AISI 304/316.
| Chain Size mm |
Working Load ton |
Link Dimension | Link Per M pc |
Length Per 100kg | |||
| Dia mm |
Inside Length mm |
Outside Width mm |
B.F M |
H.D.G M |
|||
| 3 | 0.06 | 3.15 | 15.7 | 13.1 | 63.8 | 511.0 | 498.0 |
| 4 | 0.11 | 4.00 | 18.6 | 16.0 | 53.9 | 320.0 | 305.0 |
| 5 | 0.19 | 5.00 | 22.0 | 19.4 | 45.4 | 203.0 | 193.0 |
| 6 | 0.32 | 6.00 | 26.1 | 23.5 | 37.8 | 129.0 | 120.0 |
| 8 | 0.53 | 8.00 | 32.2 | 29.5 | 31.0 | 77.8 | 74.1 |
| 10 | 0.83 | 10.00 | 39.1 | 36.2 | 25.0 | 48.5 | 47.1 |
| 12 | 1.35 | 12.00 | 46.0 | 44.0 | 21.7 | 34.0 | 33.3 |
| 13 | 1.50 | 13.00 | 49.1 | 46.1 | 20.3 | 29.7 | 27.7 |
| 16 | 2.31 | 16.00 | 59.6 | 56.5 | 16.8 | 20.2 | 18.2 |
| 20 | 3.67 | 20.00 | 73.3 | 70.0 | 13.6 | 12.3 | 11.6 |
| 24 | 5.31 | 24.00 | 87.0 | 83.6 | 11.5 | 8.5 | 8.04 |
