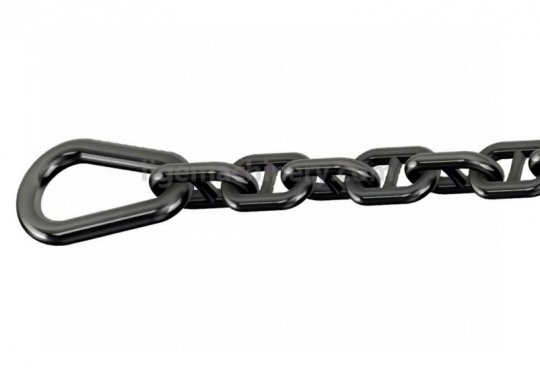

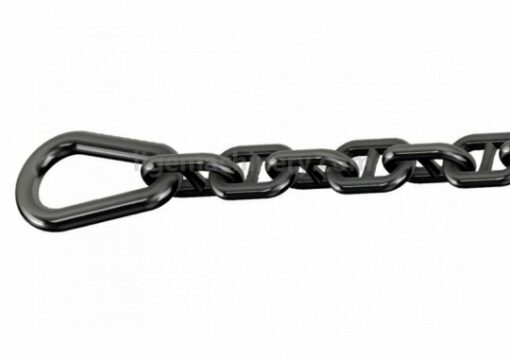

    Chafe Chain

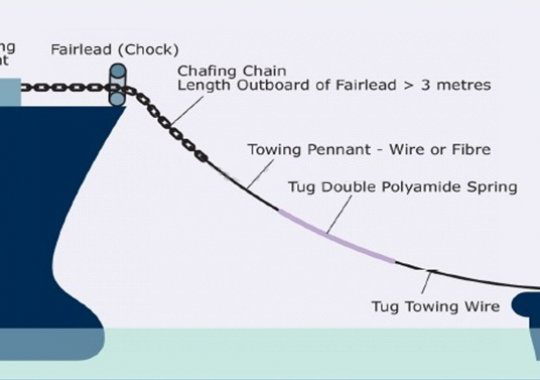

    Chafe chain is a chain at the end of a towing line or Single Point Mooring hawser, normally guided through a chock at the edge of the tanker deck. Chafe Chain is usually for mooring/emergency towing system.



    Qingdao Lige Machinery can supply a full range of OCIMF compliant chafe chains, as well as customer bespoke assemblies configured to individual operator specifications.

    • Chafe chain A & B in accordance with latest OCIMF 2018 Guidelines, 1st edition

    • Chafe chain A & B in accordance with OCIMF 2007 Guidelines, 4th edition

    • Chafe chain A, B & C in accordance with OCIMF 1993 Guidelines, 3rd edition

    •  Kenter shackles, Joining shackles, Delta plates, Pear link Shackle, Panama Chock, Smit Bracket, etc.

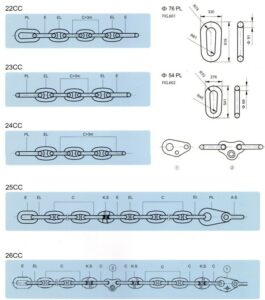

    Typical Chain A/B configuration per OCIMF 2018. Chain is manufactured, tested and inspected in accordance with IACS W22.

    Specifications:

    Nominal Diameter: 54mm

    Grade: 3

    Execution: bituminous paint

    Total length: about 9-10 meters

    Composition: Pear shaped link + End link + Enlarged link + 34Common Links + Enlarged Link + End Link

    Proof load: 1590 KN

    Breaking load: 2270KN
