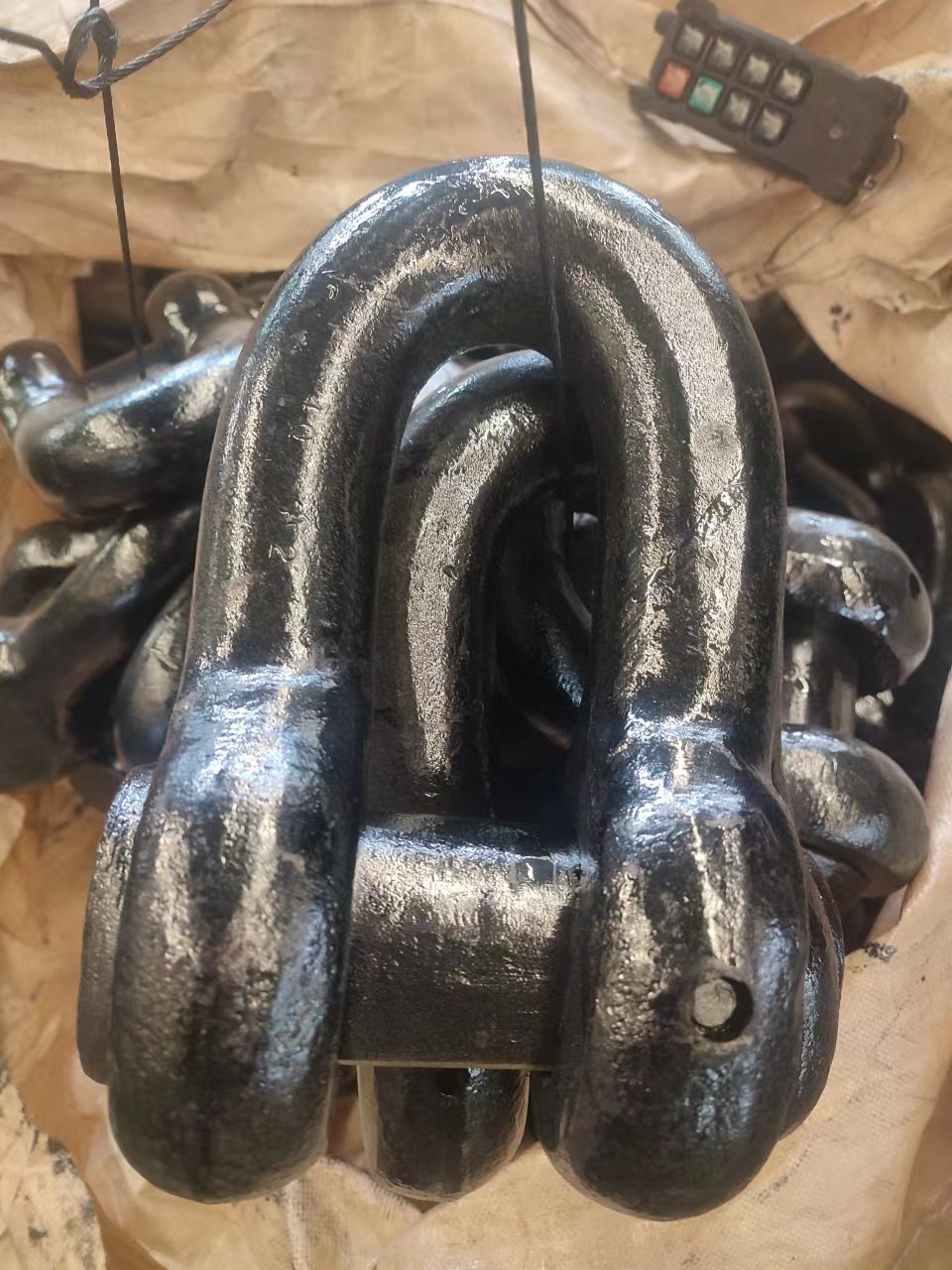

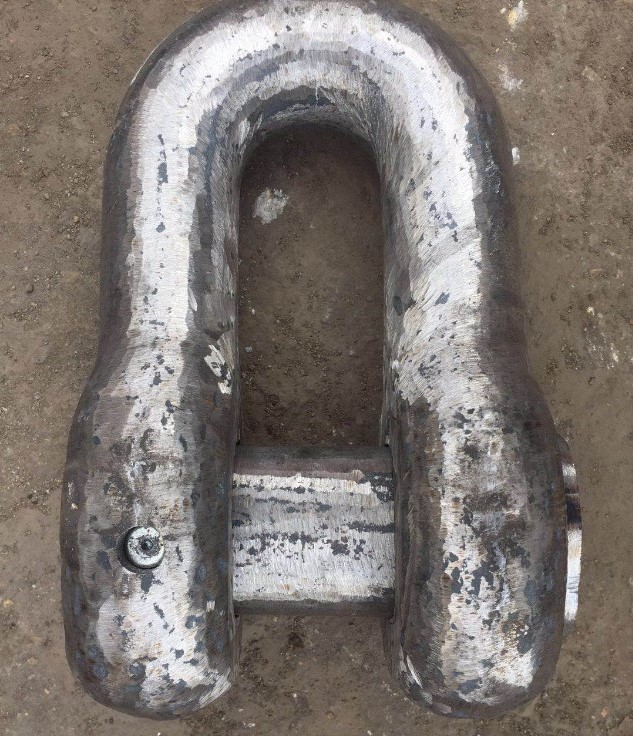

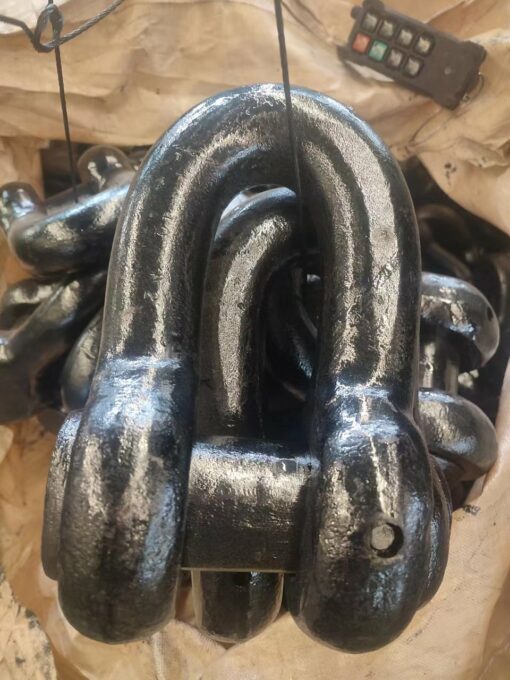

‘D’ Type Joining Shackles (Lugged)
Send Inquiry1. Grade: U1,U2,U3
2. Size: D12-70
3. Standard: ISO-1704-2007,IACSW18,W22,API-2F(U.S.A),Appvoved by 11 international class,such as ABS,DNV,BV,LR,ect.
4. Certification: ISO9001,ABA,BV,CCS,CR,DNV,GL,KR,LR,NK,RINA,RMRS
|
Product Name
|
D Type Joining Shackle or Anchor Shackle
|
|
Material
|
Alloy steel
|
|
Surface Treatment
|
natural colour，Black Painted, Galvanized
|
|
Standard
|
IACS certificate: ABS,DNV,BV,LR…
|
|
Grade
|
Grade 2 & Grade 3 for Anchor chain
|
|
Brand
|
Jinfuquan or ODM or OEM
|
|
Chain Link Type
|
Stud link chain
|
|
Length per PEC
|
25m or 27.5m or as per your request.
|
Unlike the Kenter Link, ‘D’ Type Joining Shackles do not fit the gypsy. The ‘D’ lugged joining shackle is used extensively for joining the chain to the anchor in more modern vessels. In the past this type of shackle was used, as the Kenter lugless joining shackle is used today, in the joining of the shackle lengths of cable together. If it is to be used for this purpose, the rounded crown part of the shackle should always face forward, so that it does not foul the anchor when letting go. It should be noted that the anchor crown shackle and the ‘D’ joining shackle face the opposite way to all other ‘D’ joining shackles in the cable.
- Grade 2 & 3; R3 & R4 & R5;
- R4 & R5;
- Material: alloy steel/carbon steel/stainless steel
- Surface finishing: black painting/hot dip galvanized/electro-galvanized
- Nominal Diameter: 12.5mm to 162mm
- Certificate: DNV, GL, BV, LRS, ABS, IRS, RS, KR, NK, CCS

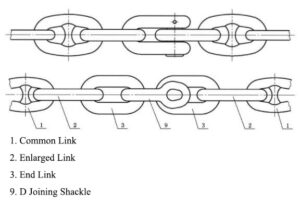

Connect Method of D Type Joining Shackle:

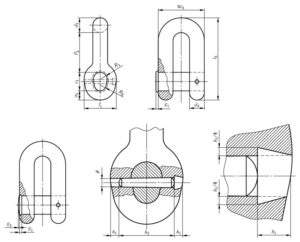

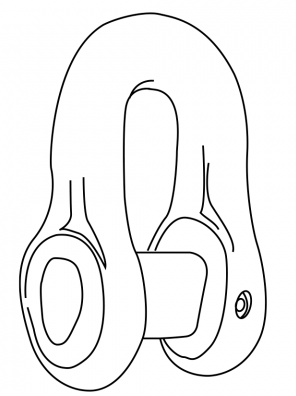

Drawing of D Type Joining Shackle:
|
Nominal Diameter (mm) |
d3 | l3 | p3 | w3 | a1 | e1 | f1 | g1 | g2 | h1 | h2 | 2R1 | 2R2 |
Weight (kg) |
|
12.5 |
16 | 89 | 43 | 50 | 10 | 20 | 35 | 2.5 | 1.3 | 4 | 25 | 15 | 12.5 | 0.60 |
| 14 | 18 | 99 | 48 | 56 | 11 | 22 | 39 | 3.0 | 1.4 | 6 | 28 | 17 | 14.0 |
0.67 |
|
16 |
21 | 114 | 54 | 64 | 13 | 26 | 45 | 3.0 | 1.6 | 32 | 21 | 17.5 | 0.95 | |
|
17.5 |
23 | 124 | 60 | 70 | 14 | 28 | 49 | 3.5 | 1.8 | 38 | 21 | 17.5 | 1.34 | |
| 19 | 25 | 135 | 65 | 76 | 15 | 30 | 53 | 4.0 | 2.0 | 40 | 23 | 19.0 |
1.84 |
|
| 20.5 | 27 | 146 | 70 | 82 | 16 | 33 | 57 | 4.0 | 2.0 | 45 | 25 | 20.5 |
2.20 |
|
|
22 |
29 | 156 | 75 | 88 | 18 | 35 | 62 | 4.4 | 2.2 | 50 | 26 | 22.0 | 2.66 | |
| 24 | 31 | 170 | 82 | 96 | 19 | 38 | 67 | 5.0 | 2.4 | 8 | 55 | 29 | 24.0 |
3.40 |
|
26 |
34 | 185 | 88 | 104 | 21 | 42 | 73 | 5.0 | 2.6 | 60 | 31 | 26.0 | 4.50 | |
| 28 | 36 | 199 | 95 | 112 | 22 | 45 | 78 | 5.6 | 2.8 | 60 | 34 | 28.0 |
5.19 |
|
|
30 |
39 | 213 | 102 | 120 | 24 | 48 | 84 | 6.0 | 3.0 | 70 | 36 | 30.0 | 6.32 | |
| 32 | 42 | 227 | 109 | 128 | 26 | 51 | 90 | 6.4 | 3.2 | 75 | 38 | 32.0 |
8.24 |
|
|
34 |
44 | 241 | 116 | 136 | 27 | 54 | 95 | 7.0 | 3.4 | 80 | 41 | 34.0 | 9.56 | |
| 36 | 47 | 256 | 122 | 144 | 29 | 58 | 101 | 7.0 | 3.6 | 10 | 80 | 43 | 36.0 |
11.31 |
|
38 |
49 | 270 | 129 | 152 | 30 | 61 | 106 | 7.6 | 3.8 | 85 | 46 | 38.0 | 13.45 | |
| 40 | 52 | 284 | 136 | 160 | 32 | 64 | 112 | 8.0 | 4.0 | 90 | 48 | 40.0 |
15.50 |
|
|
42 |
55 | 298 | 143 | 168 | 34 | 67 | 118 | 8.4 | 4.2 | 95 | 50 | 42.0 | 18.10 | |
| 44 | 57 | 312 | 150 | 176 | 35 | 70 | 123 | 9.0 | 4.4 | 100 | 53 | 44.0 |
20.25 |
|
|
46 |
60 | 327 | 156 | 184 | 37 | 74 | 129 | 9.0 | 4.6 | 105 | 55 | 46.0 |
23.33 |
|
|
48 |
62 | 341 | 163 | 192 | 38.5 | 77 | 134 | 9.5 | 4.8 | 12 | 110 | 58 | 48.0 | 27.50 |
| 50 | 65 | 355 | 170 | 200 | 40 | 80 | 140 | 10 | 5.0 | 115 | 60 | 50.0 |
31.60 |
|
|
52 |
68 | 369 | 177 | 208 | 42 | 83 | 146 | 10.4 | 5.2 | 120 | 62 | 52.0 | 34.00 | |
| 54 | 70 | 383 | 184 | 216 | 43 | 86 | 151 | 11.0 | 5.4 | 125 | 65 | 54.0 |
38.50 |
|
|
56 |
73 | 398 | 190 | 224 | 45 | 90 | 157 | 11.0 | 5.6 | 130 | 67 | 56.0 | 46.00 | |
| 58 | 75 | 412 | 197 | 232 | 46 | 93 | 162 | 11.6 | 5.8 | 140 | 70 | 58.0 |
46.80 |
|
|
60 |
78 | 426 | 204 | 240 | 48 | 96 | 168 | 12.0 | 6.0 | 140 | 72 | 60.0 | 51.00 | |
| 62 | 81 | 440 | 211 | 248 | 50 | 99 | 174 | 12.4 | 6.2 | 145 | 74 | 62.0 |
59.20 |
|
|
64 |
83 | 454 | 218 | 256 | 51 | 102 | 179 | 13.0 | 6.4 | 16 | 150 | 77 | 64.0 | 62.70 |
| 66 | 86 | 469 | 224 | 264 | 53 | 106 | 185 | 13.0 | 6.6 | 150 | 79 | 66.0 |
75.00 |
|
|
68 |
88 | 483 | 231 | 272 | 54 | 109 | 190 | 13.6 | 6.8 | 155 | 82 | 68.0 | 76.70 | |
| 70 | 91 | 497 | 238 | 280 | 56 | 112 | 196 | 14.0 | 7.0 | 160 | 84 | 70.0 |
90.00 |
|
|
73 |
95 | 518 | 248 | 292 | 58 | 117 | 204 | 14.6 | 7.3 | 170 | 88 | 73.0 | 95.00 | |
| 76 | 99 | 540 | 258 | 304 | 61 | 122 | 213 | 15.0 | 7.6 | 180 | 91 | 76.0 |
107.00 |
|
|
78 |
101 | 554 | 265 | 312 | 62 | 125 | 218 | 15.6 | 7.8 | 180 | 94 | 78.0 | 116.00 | |
| 81 | 105 | 575 | 275 | 324 | 65 | 130 | 227 | 16.0 | 8.0 | 190 | 97 | 81.0 |
130.00 |
|
|
84 |
109 | 596 | 286 | 336 | 67 | 134 | 235 | 17.0 | 8.4 | 200 | 101 | 84.0 | 136.00 | |
| 87 | 113 | 618 | 296 | 348 | 70 | 139 | 244 | 17.4 | 8.7 | 200 | 104 | 87.0 |
160.00 |
|
|
90 |
117 | 639 | 306 | 360 | 72 | 144 | 252 | 18.0 | 9.0 | 210 | 108 | 90.0 | 176.00 | |
| 92 | 120 | 653 | 313 | 368 | 74 | 147 | 258 | 18.4 | 9.2 | 220 | 110 | 92.0 |
196.00 |
|
|
95 |
124 | 675 | 323 | 380 | 76 | 152 | 266 | 19.0 | 9.5 | 220 | 114 | 95.0 |
215.00 |
|
|
97 |
126 | 689 | 330 | 388 | 78 | 155 | 272 | 19.4 | 9.7 | 20 | 230 | 116 | 97.0 | 222.00 |
| 100 | 130 | 710 | 340 | 400 | 80 | 160 | 280 | 20.0 | 10.0 | 230 | 120 | 100.0 |
252.00 |
|
|
102 |
133 | 724 | 347 | 408 | 82 | 163 | 286 | 20.4 | 10.2 | 240 | 122 | 102.0 | 267.00 | |
| 105 | 137 | 746 | 357 | 420 | 84 | 168 | 294 | 21.0 | 10.5 | 250 | 126 | 105.0 |
294.00 |
|
