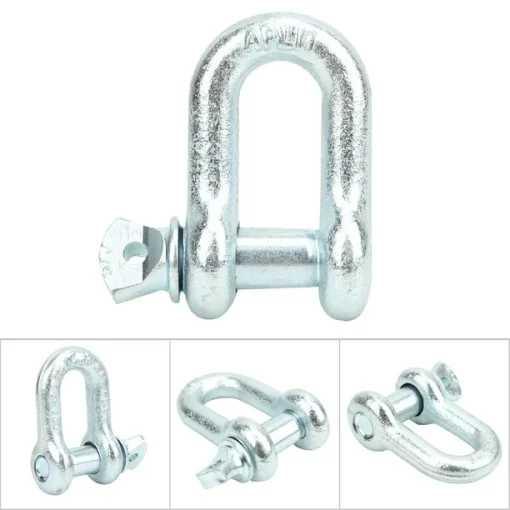

D-type Shackle G210
Send InquiryD-type Shackle G210
The straight legs of screw pin G210 chain shackles makes them the best choice for applications involving two-directional pulls.
Multiple load direction pulls can stress the sides and increase the risk of failure. In these instances, a bow or anchor shackle is the best type of shackle.
Forged- quenched and tempered- with alloy pins.
It lets the user connect and disconnect quickly, so it’s great for temporary or attachments that change often.
| Weight | Size | WLL | Dimensions(mm) | ||||||||
| (kg) | (in.) | (T) | |||||||||
| G210 | A | B | D | F | G | H | L | M | P | ||
| 0.05 | 1/4 | 1/2 | 11.9 | 7.85 | 6.35 | 15.5 | 32.5 | 46.7 | 4.85 | 35.1 | 6.35 |
| 0.08 | 5/16 | 3/4 | 13.5 | 9.65 | 7.85 | 19.1 | 37.3 | 53 | 5.6 | 42.2 | 7.85 |
| 0.13 | 3/8 | 1 | 16.8 | 11.2 | 9.65 | 23.1 | 45.2 | 63 | 6.35 | 51.5 | 9.65 |
| 0.2 | 7/16 | 1-1/2 | 19.1 | 12.7 | 11.2 | 26.9 | 51.5 | 74 | 7.85 | 60.5 | 11.2 |
| 0.27 | 1/2 | 2 | 20.6 | 16 | 12.7 | 30.2 | 58.5 | 83.5 | 9.65 | 68.5 | 12.7 |
| 0.57 | 5/8 | 3-1/4 | 26.9 | 19.1 | 16 | 38.1 | 74.5 | 106 | 11.2 | 85 | 17.5 |
| 1.2 | 3/4 | 4-3/4 | 31.8 | 22.4 | 19.1 | 46 | 89 | 126 | 12.7 | 101 | 20.6 |
| 1.43 | 7/8 | 6-1/2 | 36.6 | 25.4 | 22.4 | 53 | 102 | 148 | 12.7 | 114 | 24.6 |
| 2.1 5 | 1 | 8-1/2 | 42.9 | 28.7 | 25.4 | 60.5 | 119 | 167 | 14.2 | 129 | 26.9 |
| 3.06 | 1-1/8 | 9-1/2 | 46 | 31.8 | 29.5 | 68.5 | 131 | 190 | 16 | 142 | 31.8 |
| 4.11 | 1-1/4 | 12 | 51.5 | 35.1 | 32.8 | 76 | 146 | 210 | 17.5 | 156 | 35.1 |
| 5.28 | 1-3/8 | 13-1/2 | 57.00 | 38.1 | 36.1 | 84.00 | 162 | 233 | 19.1 | 174 | 38.1 |
| 7.23 | 1-1/2 | 17 | 60.5 | 41.4 | 39.1 | 92 | 175 | 254 | 20.6 | 187 | 41.1 |
| 12.1 | 1-3/4 | 25 | 73 | 51 | 46.7 | 106 | 225 | 313 | 25. 40 | 231 | 57 |
| 19.2 | 2 | 35 | 82.5 | 57 | 53.00 | 122 | 253 | 348 | 31 | 263 | 61 |
