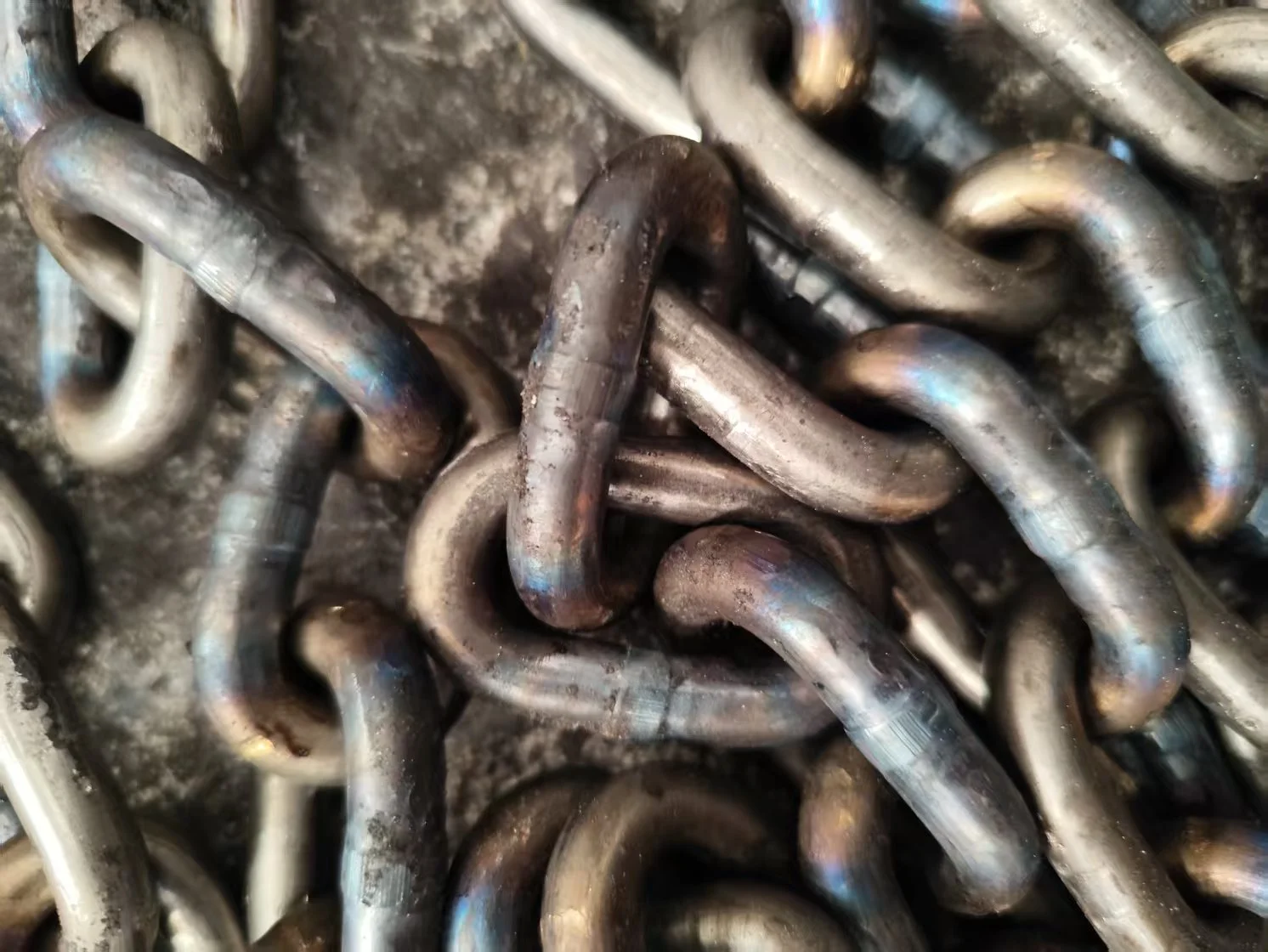

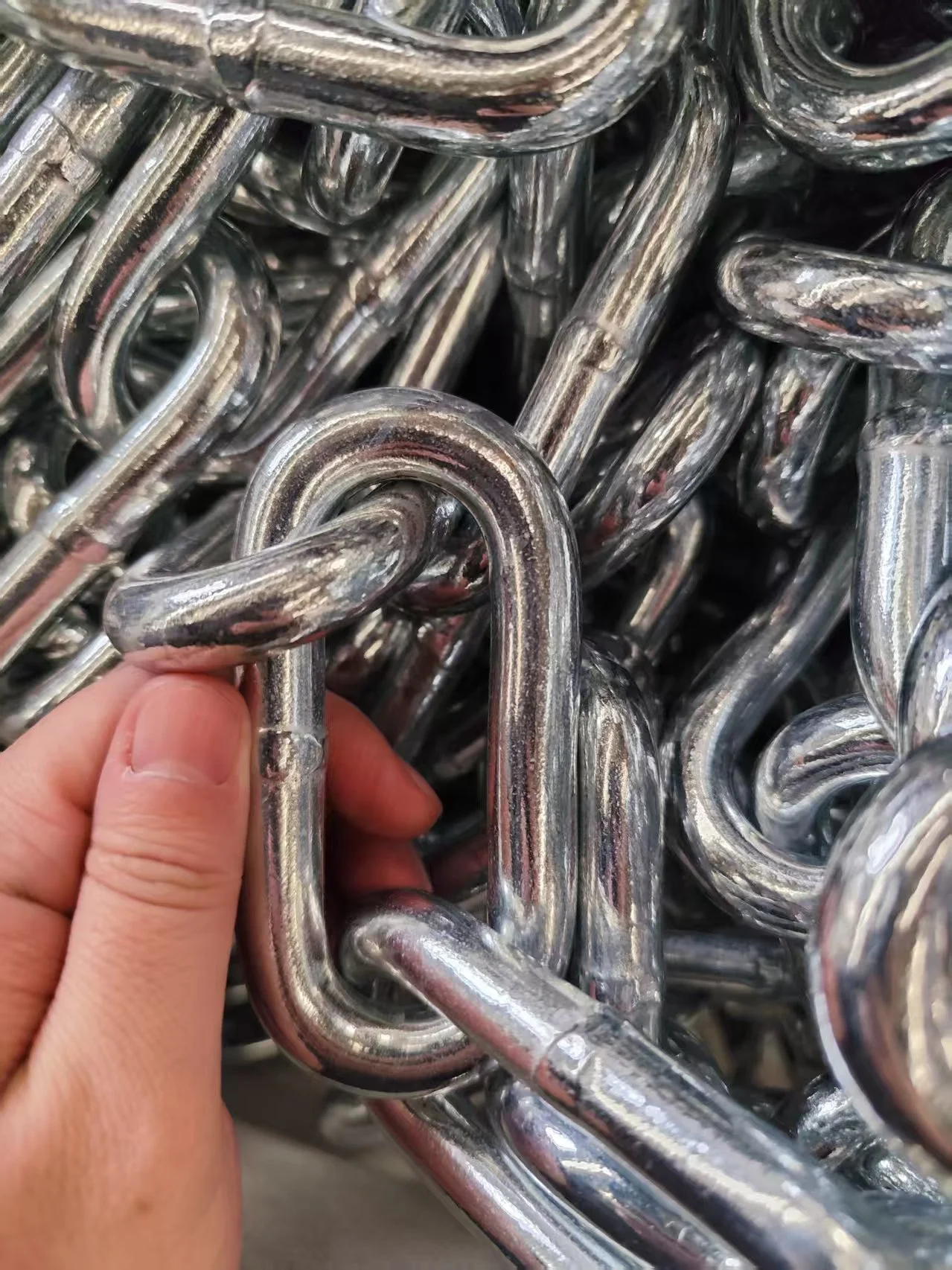

Chain DIN 763 is a kind of welded long link chain.
Our Steel Chains, side welded and in a variety of protective finishes, are manufactured to International standards & are suitable for all general purpose, engineering, industrial, agricultural and marine applications.
The chain material can be Carbon Steel, Stainless Steel AISI 304/316.
There are five types of Germany Standard Chain: DIN766, DIN764, DIN763, DIN5685 type A and type C.
If you are interested in our chains, please contact us. We are capable of customizing products in line with your requirements.
Size(d) mm |
lnside Length mm |
Outside Width mm |
Working Load kn |
Proof Load kn |
Breaking Load kn |
Weight per M kg |
2.0 | 22.0 | 8.0 | 0.25 | 0.80 | 1.25 | 0.06 |
2.5 | 24.0 | 10.0 | 0.40 | 0.80 | 2.00 | 0.10 |
3.0 | 26.0 | 12.0 | 0.55 | 1.05 | 3.20 | 0.15 |
3.5 | 28.0 | 14.0 | 0.80 | 1.54 | 3.85 | 0.20 |
4.0 | 32.0 | 16.0 | 1.00 | 2.50 | 6.00 | 0.27 |
4.5 | 34.0 | 18.0 | 1.28 | 3.00 | 6.30 | 0.35 |
5.0 | 35.0 | 20.0 | 1.60 | 4.00 | 10.00 | 0.43 |
5.5 | 38.5 | 22.0 | 1.95 | 4.20 | 10.50 | 0.52 |
6.0 | 42.0 | 24.0 | 2.40 | 5.00 | 14.00 | 0.63 |
7.0 | 49.0 | 28.0 | 3.00 | 7.50 | 18.00 | 0.86 |
8.0 | 52.0 | 32.0 | 4.00 | 10.00 | 25.00 | 1.10 |
8.5 | 56.0 | 34.0 | 4.60 | 10.20 | 25.50 | 1.25 |
9.0 | 59.0 | 36.0 | 5.30 | 10.50 | 32.00 | 1.41 |
10.0 | 65.0 | 40.0 | 6.30 | 16.00 | 40.00 | 1.75 |
11.0 | 72.0 | 44.0 | 7.90 | 16.80 | 47.50 | 2.11 |
12.0 | 78.0 | 48.0 | 9.40 | 18.00 | 56.50 | 2.55 |
13.0 | 82.0 | 52.0 | 10.00 | 25.00 | 63.00 | 2.95 |
16.0 | 100.0 | 64.0 | 16.00 | 40.00 | 100.00 | 4.45 |
18.0 | 113.0 | 70.0 | 21.20 | 42.30 | 127.00 | 5.65 |
19.0 | 119.0 | 72.0 | 23.70 | 47.30 | 142.00 | 6.25 |
20.0 | 120.0 | 75.0 | 25.00 | 50.00 | 160.00 | 7.00 |
22.0 | 127.0 | 82.0 | 31.70 | 63.30 | 190.00 | 8.55 |
25.0 | 140.0 | 85.0 | 40.90 | 81.70 | 245.00 | 10.90 |
28.0 | 152.0 | 96.0 | 60.00 | 120.00 | 300.00 | 13.90 |
32.0 | 171.0 | 108.0 | 80.00 | 160.00 | 400.00 | 18.20 |
