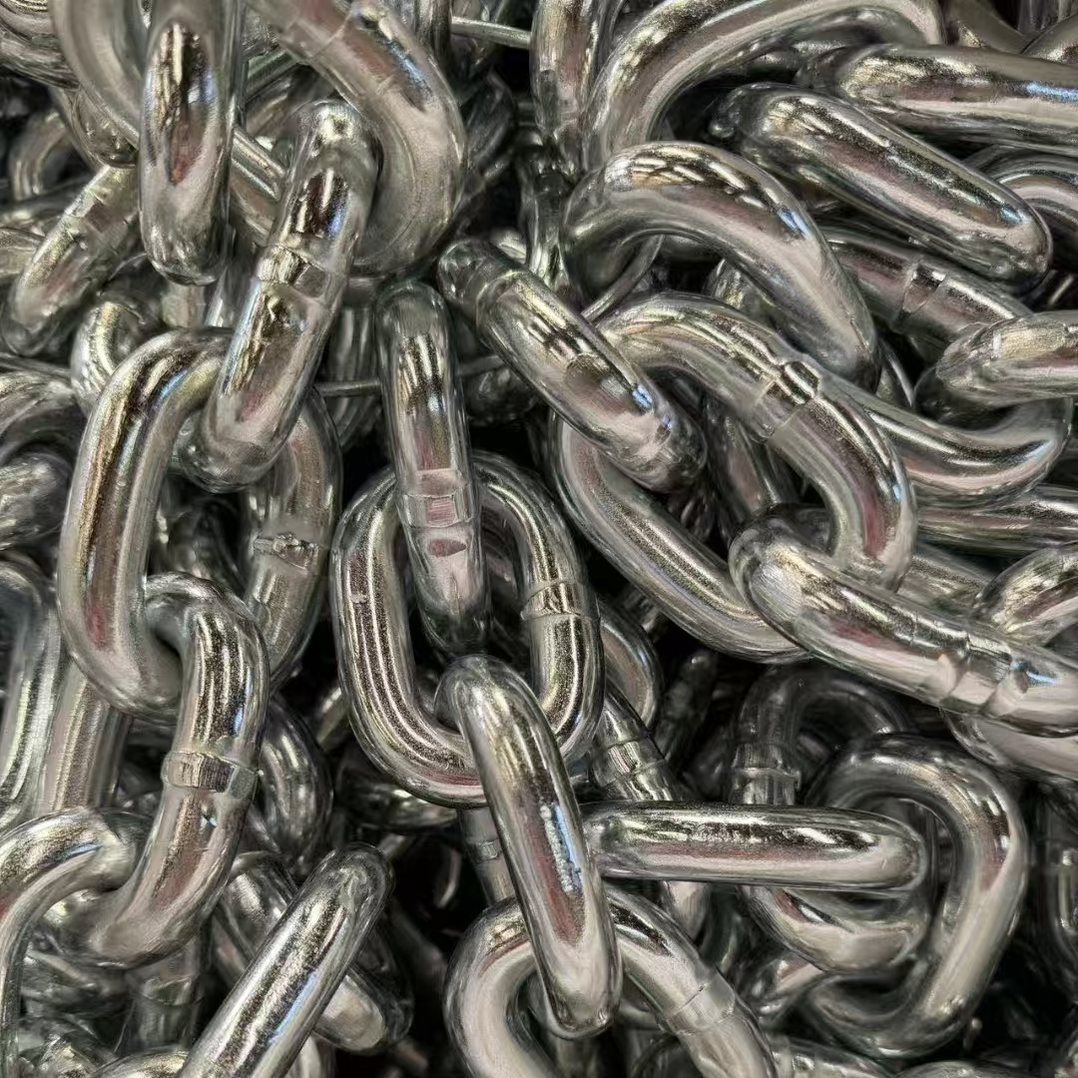

DIN766 Short Link Chain
Send InquiryDIN766 Short Link Chain
Type: Short Link Chain Germany Standard
Chain DIN766 is suitable general purposes: Engineering, Industrial, Agricultural and Marine Applications in conjunction with our accessories.
It’s surface can be treated galvanized, hot dip galvanized, black painted, self color as your request.
The chain material can be Carbon Steel, Stainless Steel AISI 304/316.
There are five types of Germany Standard Chain: DIN766, DIN764, DIN763, DIN5685 type A and type C.
We are capable of customizing products in line with your requirements.
| Size(d) mm |
lnside Length mm |
Inside Width mm |
Outside Width mm |
Weight per M kg |
| 2 | 12.0 | 3.5 | 7.5 | 0.07 |
| 3 | 16.0 | 4.2 | 11.0 | 0.16 |
| 4 | 16.0 | 5.0 | 13.7 | 0.32 |
| 5 | 18.5 | 6.0 | 17.0 | 0.50 |
| 6 | 18.5 | 7.2 | 20.2 | 0.80 |
| 7 | 22.0 | 8.4 | 23.8 | 1.10 |
| 8 | 24.0 | 9.6 | 27.2 | 1.40 |
| 9 | 27.0 | 10.8 | 30.6 | 1.80 |
| 10 | 28.0 | 12.0 | 34.0 | 2.20 |
| 11 | 31.0 | 13.2 | 37.4 | 2.70 |
| 12 | 36.0 | 14.4 | 40.8 | 3.10 |
| 13 | 36.0 | 15.6 | 44.2 | 3.80 |
| 14 | 41.0 | 16.8 | 47.6 | 4.40 |
| 16 | 45.0 | 19.2 | 54.4 | 5.70 |
| 18 | 50.0 | 21.6 | 61.2 | 7.30 |
| 19 | 53.0 | 22.8 | 64.6 | 7.97 |
| 20 | 56.0 | 24.0 | 68.0 | 9.00 |
| 22 | 62.0 | 26.4 | 75.0 | 11.00 |
| 23 | 64.0 | 27.6 | 78.2 | 12.00 |
| 26 | 73.0 | 31.2 | 88.4 | 15.00 |
| 28 | 78.0 | 33.8 | 95.2 | 18.00 |
| 30 | 84.0 | 41.0 | 102.0 | 19.50 |
| 32 | 90.0 | 43.0 | 108.8 | 23.00 |
