Fishing Chains – DIN763, DIN764, DIN766 Aquaculture Mooring Chain

    Send Inquiry

    Fishing chain finish is preferred to be zinc plated (galvanized) for anti corrosion and longer service life.





    • Size: 16*48mm
    • Structure: Welded Chain
    • Function: Conveyor Chain, Aquaculture Mooring, Fish farm cage mooring
    • Material: Alloy Steel
    • Standard: DIN763, DIN764, DIN766
    • Surface: Zinc plated (galvanized)
    • Grade: Grade 50, Grade 60, Grade 80
    • Weight: 5.7kg/m
    • MOQ: 100 Meters
    • Sample: Available
    Category:

    Fishing chain, fishing net chain, long link chain, round link chain lifting, Grade 60 chain, Grade 80 chain, long link chain for fishing industry, marine culture, marine aquaculture, alloy steel chain.

    Application

    Marine culture, marine aquaculture,Marine fishery

    SCIC short link (SL), medium link (ML) & long link (LL) chains for fishing net are made of alloy steel for meeting the various trawl nets (dimensionally), as well as challenging strength, temperature and water conditions of worldwide offshore aquaculture demand.

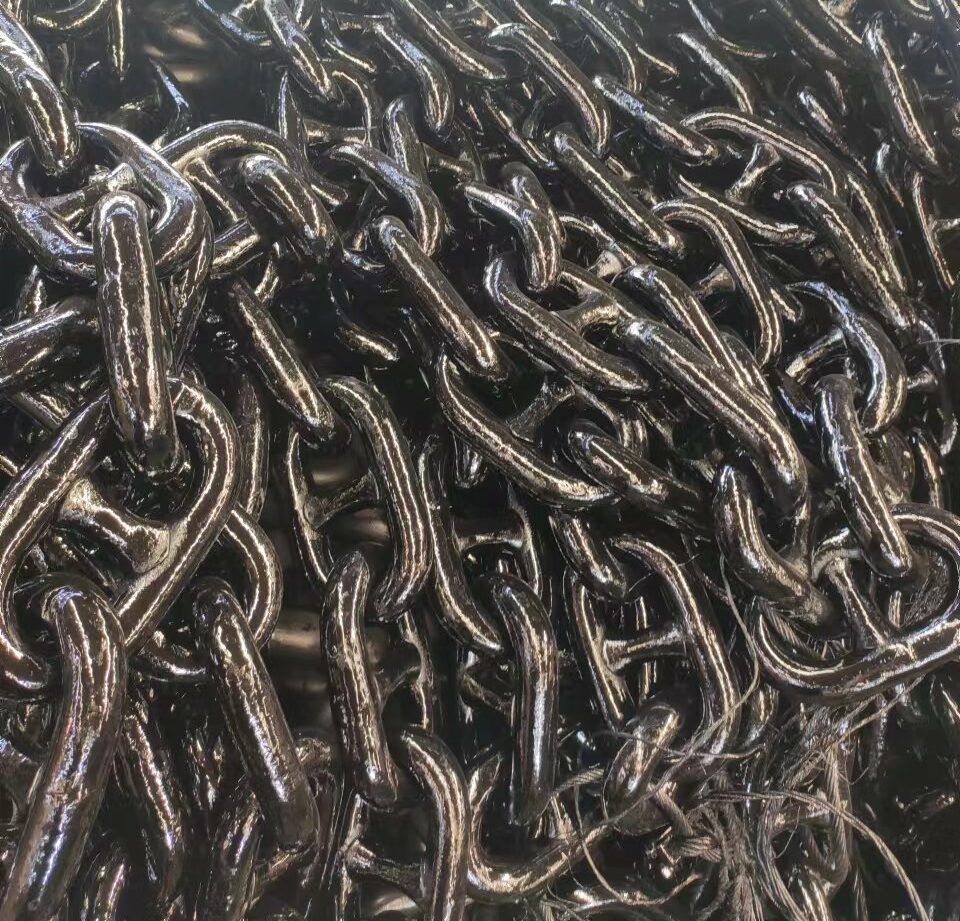

    1    2   Fishing Chain

    Fishing chain finish is preferred to be zinc plated (galvanized) for anti corrosion and longer service life.

    Chain Parameter

    Figure 1: fishing chain links dimensions

    Table 1: short link (SL) fishing chain dimensions and mechanical properties

    chain size inner width (b1) min. breaking force (kN) weight
    d x t (mm) min. (mm) G50 G60 G80 (~kg/m)
    16 x 48 22.4 201 253 322 5.7
    19 x 57 27 284 357 454 8.1
    20 x 60 27 314 396 503 9
    22 x 66 28.6 380 479 608 10.9
    26 x 78 32.5 531 669 849 15.2

    Table 2: medium link (ML) fishing chain dimensions and mechanical properties

    chain size inner width (b1) min. breaking force (kN) weight
    d x t (mm) min. (mm) G50 G60 G80 (~kg/m)
    16 x 64 24 201 253 322 5.1
    18 x 64 21 254 321 407 6.6
    19 x 76 28.5 284 357 454 7.1
    22 x 88 31 380 479 608 11.6
    24 x 86 28 452 570 724 12.4
    26 x 91 35 531 669 849 14.4
    30 x 108 37.5 707 891 1131 19

    Table 3: long link (LL) fishing chain dimensions and mechanical properties

    chain size inner width (b1) min. breaking force (kN) weight
    d x t (mm) min. (mm) G50 G60 G80 (~kg/m)
    16 x 100 26 201 253 322 4.3
    19 x 100 27 284 357 503 6.5
    22 x 120 36 380 479 608 8.9
    26 x 140 41 531 669 849 12.9
