Ordinary short link chains are made of low carbon mild steel, it was so called ordinary chains or mild steel chains. This short link chains are our most selling chains because of its super competitive prices.
Our chain products include but not limit to hoisting chain and ordinary chain.
Ordinary chains are mostly used for decoration or general connection, and should not used for any lifting applications. It’s can be use as fence protection, bicycle chains, construction site hanging chains, factory garages, etc.
We supply chains available in sizes ranging from 2mm-25mm, and the surface treatment can be customized as required.
SPECIFICATIONS
■ Material: Low carbon mild steel
■ Surface finish: self-color or electric galvanized or hot dip galvanized
■ Packing: Plastic reel, plastic bucket, gunny bags, cartons, optional with different cost
KEY ADVANTAGES
■ Versatility: Suitable for general use, providing versatility for lifting, rigging, securing and other common tasks.
■ Low maintenance requirements: Maintenance is simple and requires only basic cleaning and lubrication for extended durability.
■ Various sizes: Available in a variety of sizes, it can be flexibly adapted to various application scenarios.
■ Corrosion resistance
Data Sheet
Short Link Chain
LINK SPECIFICATION |
TEST LOAD | BREAKING LOAD |
NET WEIGHT PER 200FT | ||||

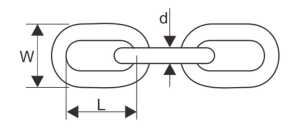

D | L | W |
(KG) |
||||
IN |
MM | MM | MM | KG | KG | BF | HDG |
1/8 | 3.2 | 16 | 12 | 200 | 400 | 11.4 |
11.74 |
5/32 |
4 | 18.5 | 14.5 | 300 | 600 | 18.6 | 19 |
3/16 | 4.7 | 19 | 17 | 400 | 800 | 26.2 |
27 |
7/32 |
5.5 | 20 | 19 | 550 | 1100 | 36.8 | 38 |
1/4 | 6.35 | 22 | 21 | 750 | 1500 | 50 |
51.5 |
5/16 |
7.94 | 26 | 26 | 1200 | 2400 | 80 | 82.4 |
3/8 | 9.5 | 28 | 32 | 1700 | 3400 | 122 |
125.7 |
7/16 |
11.11 | 33 | 36 | 2300 | 4600 | 164 | 169 |
1/2 | 12.7 | 39 | 43 | 3000 | 6000 | 210 |
216 |
5/8 |
15.8 | 45 | 53 | 4700 | 9400 | 334 | 344 |
3/4 | 19 | 55 | 63 | 6800 | 13600 | 485 |
499 |
7/8 |
22.2 | 64 | 74 | 9250 | 18500 | 656 |
675 |
1 | 25.4 | 73 | 84 | 12150 | 24300 | 870 |
896 |
