Stud Link Anchor Chain
Send InquiryChain Grade:U2/U3
Material:CM490/CM690
Standards:Rules of International Class Society
Certificate:ABS,LR, BV, GL,DNV,RINA, NK, KR, RS, IRS, CCS
Fob Price:Get Latest Price Now
Place of Origin:China
- Stud Link Anchor Chain Cable Introduction:

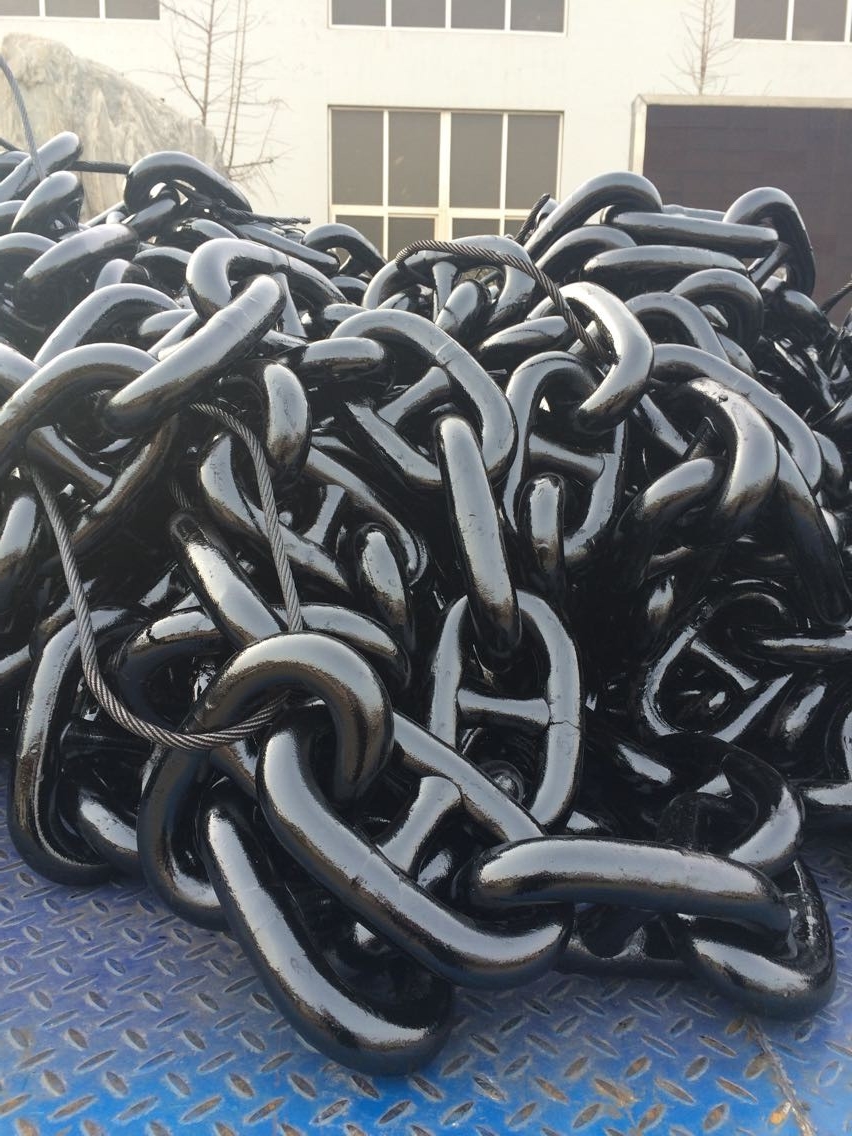

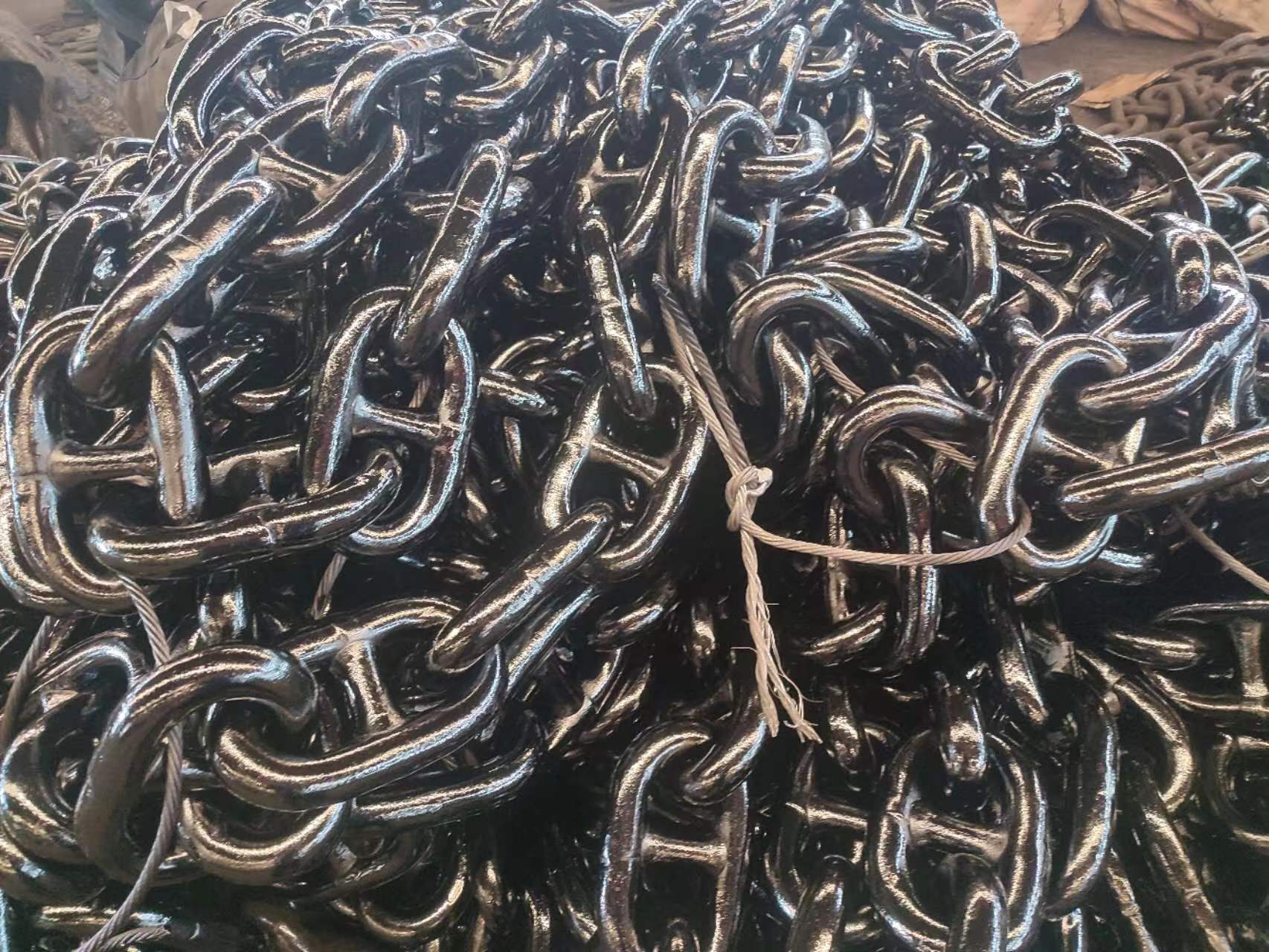

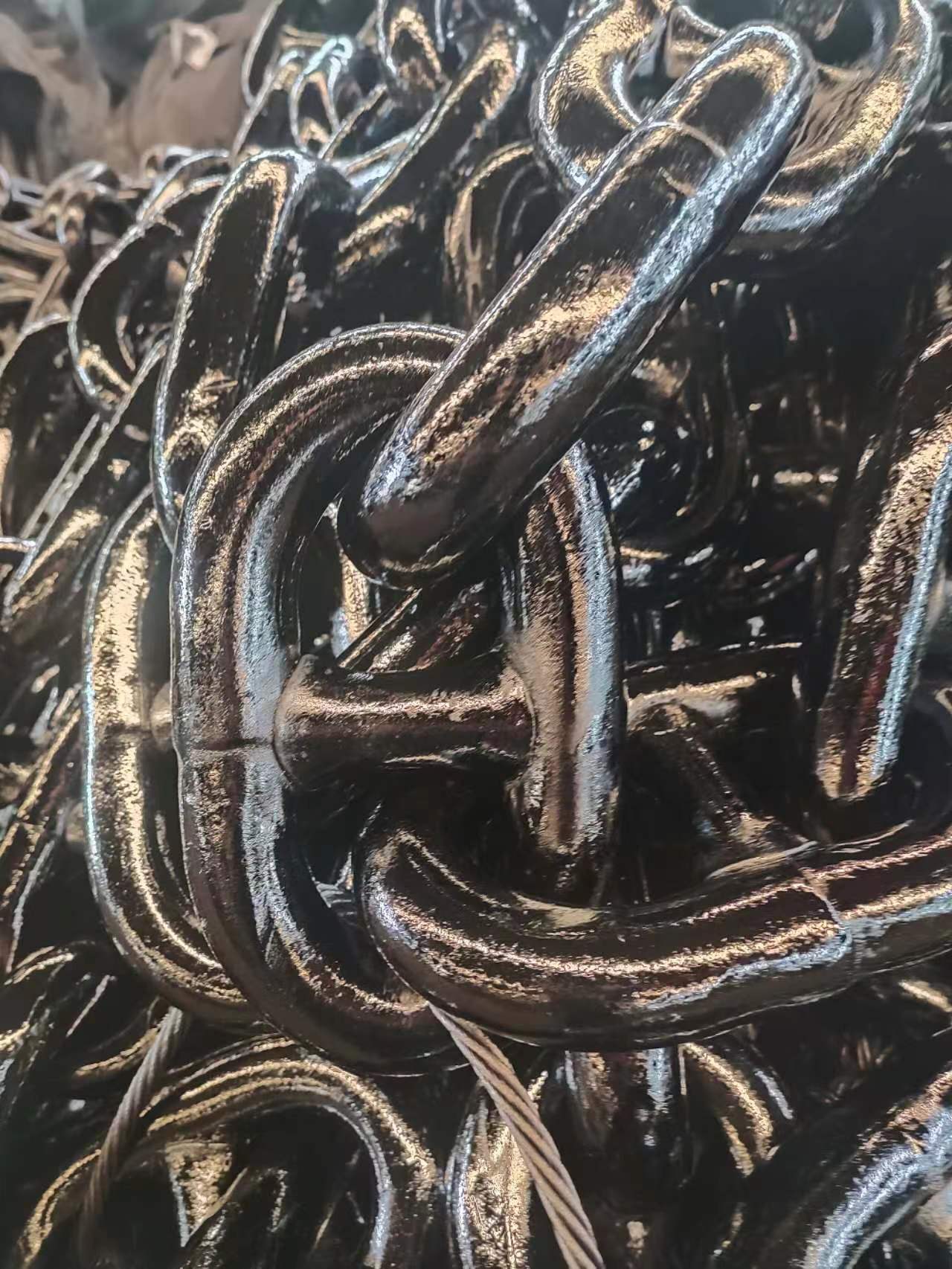

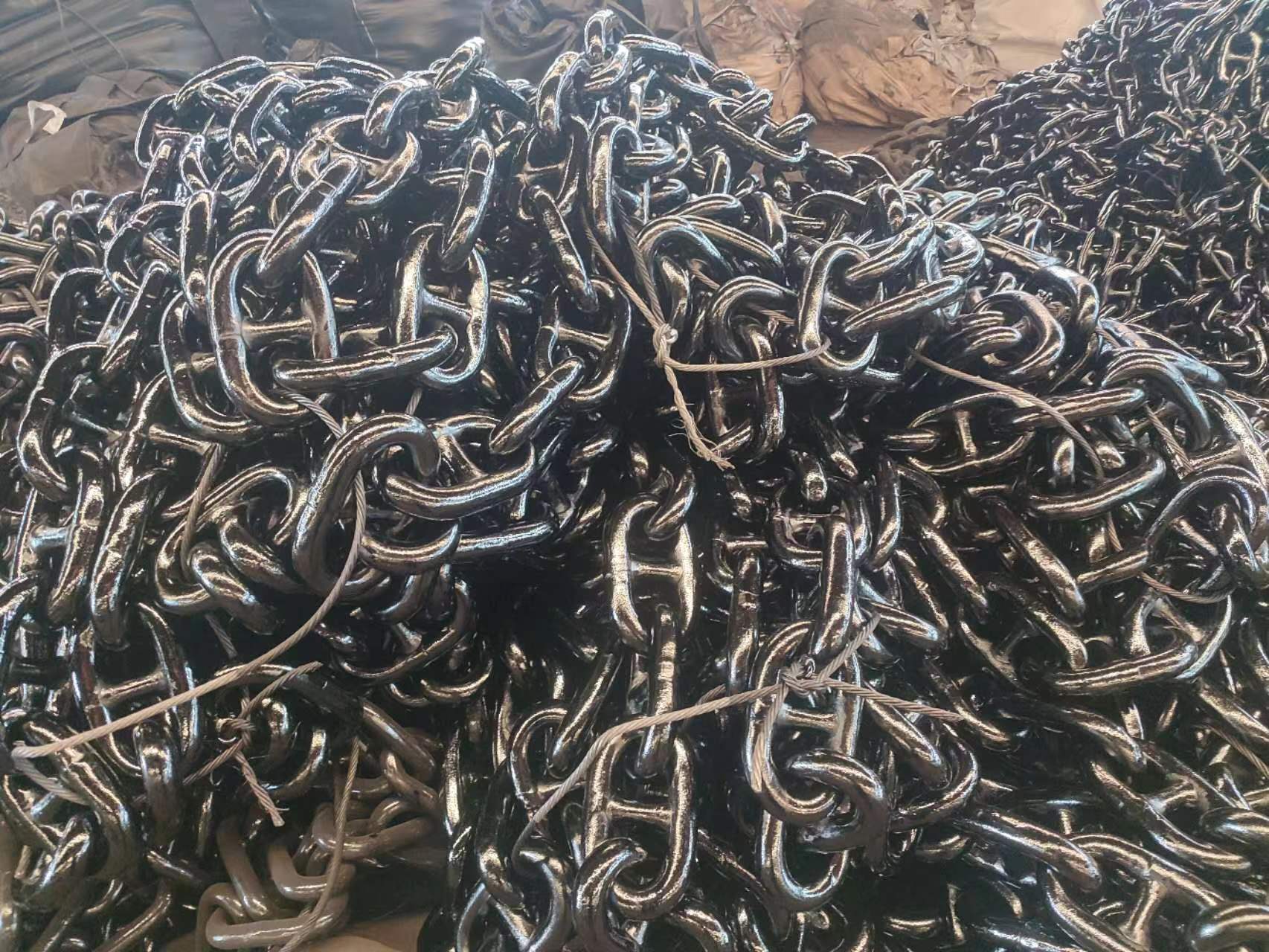

Stud Link Anchor Chain is widely used on Ships, Oil Rigs, Mooring Buoys and other Floating Equipments.Used for anchor and mooring chains, stud link chains have a central stud for extra strength.
Studlink anchor chains are available in grades from grade U2 up to grade U3.
Dashin supplies anchor chain in wide range of sizes and grades: Supplied with LR, ABS, BV, CCS, DNV-GL, NK, KR, RINA, RMRS certificate.
Our chain meets quality requirement of ISO1704, GB/T 549, JIS F3303, Gost 228, IACS, OCIMF, API and other international regulations.
- Specification of Studlink Anchor Chain:
The studlink anchor chain in grade U2 and grade U3 are mostly used anchor chains for commercial shipping.
The difference between grade U2 and grade U3 is the additional heat treatment process after manufacturing of the anchor chain that upgrades the quality, as well as the raw materials are different.
Studlink chains are available in black tarred, hot dip galvanised.
| TEST LOAD OF STUD LINK ANCHOR CHAIN AND FITTINGS | |||||
| Chain Diameter (mm) | Proof Test Load (KN) | Break Test Load (KN) | Weight KG/27.5Mtr | ||
| Grade 2 | Grade 3 | Grade 2 | Grade 3 | ||
| 12.5 | 66 | 92 | 92 | 132 | 99 |
| 14 | 82 | 116 | 116 | 165 | 122 |
| 16 | 107 | 150 | 150 | 216 | 158 |
| 17.5 | 127 | 179 | 179 | 256 | 194 |
| 19 | 150 | 211 | 211 | 301 | 240 |
| 20.5 | 175 | 244 | 244 | 349 | 269 |
| 22 | 200 | 280 | 280 | 401 | 322 |
| 24 | 237 | 332 | 332 | 476 | 370 |
| 26 | 278 | 389 | 389 | 556 | 431 |
| 28 | 321 | 449 | 449 | 642 | 496 |
| 30 | 368 | 514 | 514 | 735 | 564 |
| 32 | 417 | 583 | 583 | 833 | 635 |
| 34 | 468 | 655 | 655 | 937 | 712 |
| 36 | 523 | 732 | 732 | 1050 | 800 |
| 38 | 581 | 812 | 812 | 1160 | 887 |
| 40 | 640 | 896 | 896 | 1280 | 1032 |
| 42 | 703 | 981 | 981 | 1400 | 1084 |
| 44 | 769 | 1080 | 1080 | 1540 | 1197 |
| 46 | 837 | 1170 | 1170 | 1680 | 1310 |
| 48 | 908 | 1270 | 1270 | 1810 | 1438 |
| 50 | 981 | 1370 | 1370 | 1960 | 1546 |
| 52 | 1060 | 1480 | 1480 | 2110 | 1661 |
| 54 | 1140 | 1590 | 1590 | 2270 | 1791 |
| 56 | 1220 | 1710 | 1710 | 2430 | 1926 |
| 58 | 1290 | 1810 | 1810 | 2600 | 2086 |
| 60 | 1380 | 1940 | 1940 | 2770 | 2249 |
| 62 | 1470 | 2060 | 2060 | 2940 | 2361 |
| 64 | 1560 | 2190 | 2190 | 3130 | 2516 |
| 66 | 1660 | 2310 | 2310 | 3300 | 2676 |
| 68 | 1750 | 2450 | 2450 | 3500 | 2885 |
| 70 | 1840 | 2580 | 2580 | 3690 | 3010 |
| 73 | 1990 | 2790 | 2790 | 3990 | 3274 |
| 76 | 2150 | 3010 | 3010 | 4300 | 3548 |
| 78 | 2260 | 3160 | 3160 | 4500 | 3737 |
| 81 | 2410 | 3380 | 3380 | 4820 | 4030 |
| 84 | 2580 | 3610 | 3610 | 5160 | 4334 |
| 87 | 2750 | 3850 | 3850 | 5500 | 4650 |
| 90 | 2920 | 4090 | 4090 | 5840 | 4976 |
| 92 | 3040 | 4260 | 4260 | 6080 | 5199 |
| 95 | 3230 | 4510 | 4510 | 6440 | 5544 |
| 97 | 3340 | 4680 | 4680 | 6690 | 5780 |
| 100 | 3530 | 4940 | 4940 | 7060 | 6143 |
| 102 | 3660 | 5120 | 5120 | 7320 | 6398 |
| 105 | 3850 | 5390 | 5390 | 7700 | 6773 |
| 107 | 3980 | 5570 | 5570 | 7960 | 7033 |
| 111 | 4250 | 5940 | 5940 | 8480 | 7569 |
| 114 | 4440 | 6230 | 6230 | 8890 | 7983 |
| 117 | 4650 | 6510 | 6510 | 9300 | 8409 |
| 120 | 4850 | 6810 | 6810 | 9720 | 8863 |
| 122 | 5000 | 7000 | 7000 | 9990 | 9143 |
| 124 | 5140 | 7200 | 7200 | 10280 | 9598 |
| 127 | 5350 | 7490 | 7490 | 10710 | 9908 |
| 130 | 5570 | 7800 | 7800 | 11140 | 10382 |
