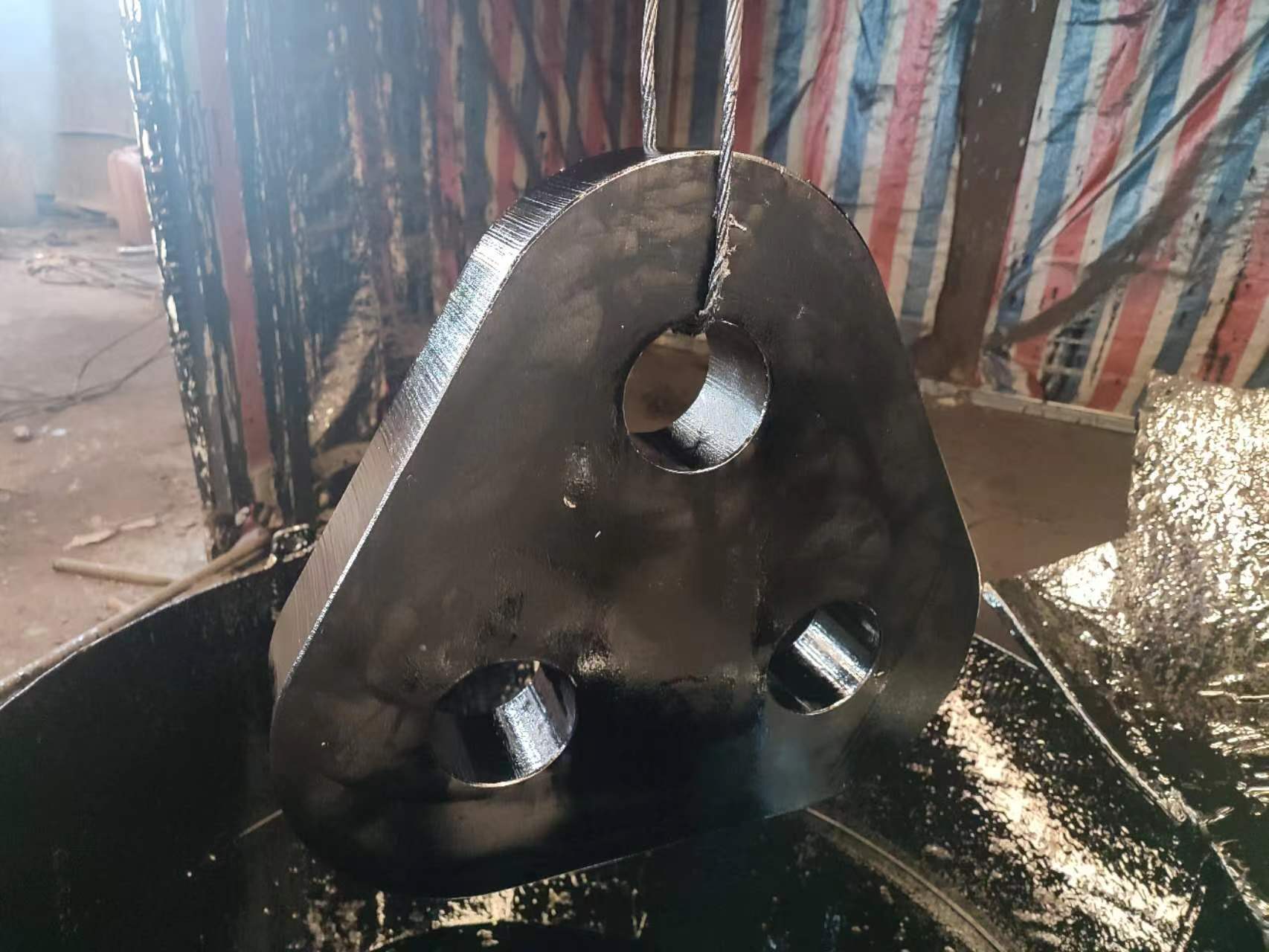

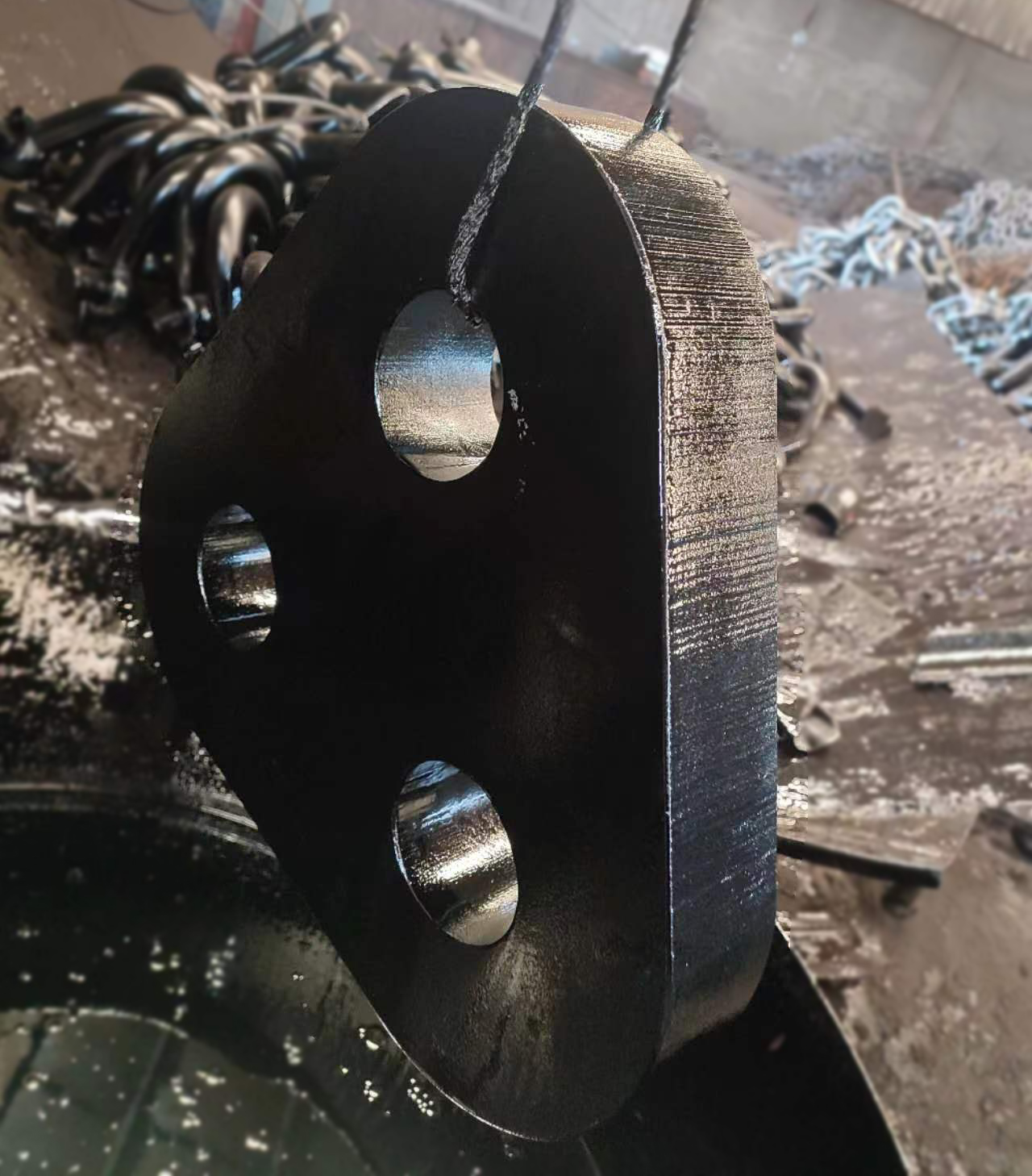

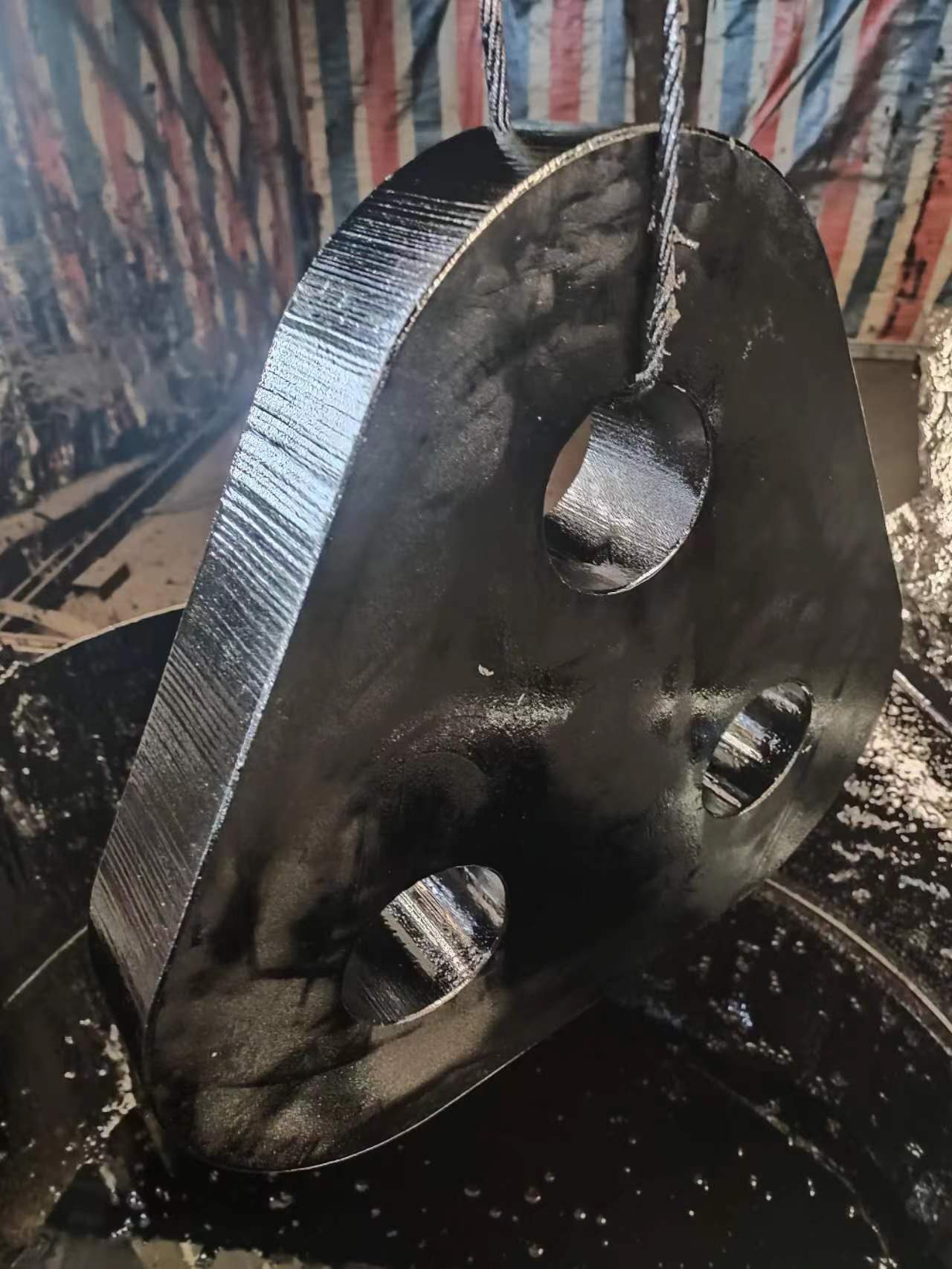

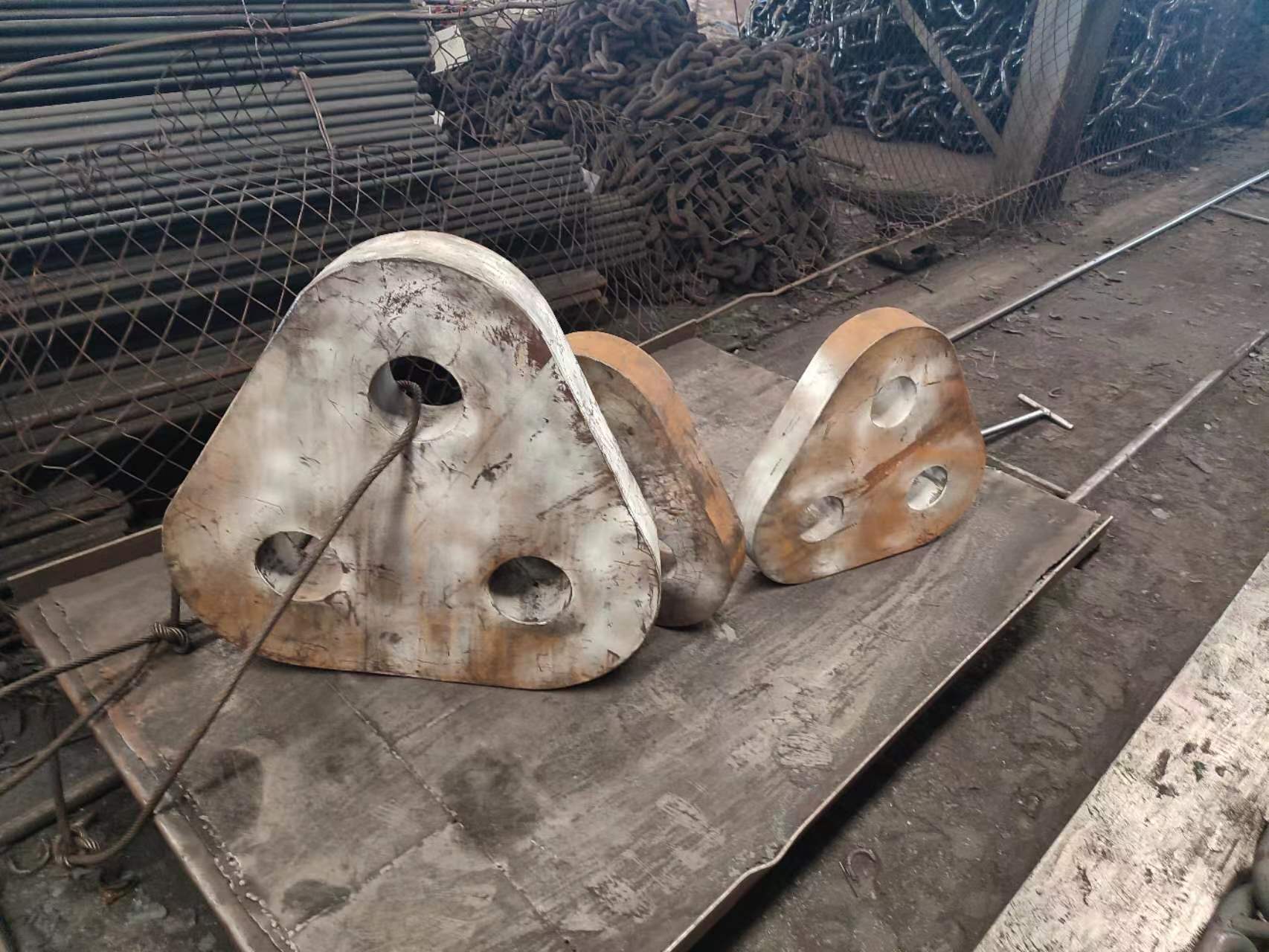

Triangle Connecting Plate/Delta Plate

Triangle Connecting Plate/Delta Plate for Mooring System

• Know as Triangle plate, Tri-plate or Pad Eye;
• Material: Alloy steel, high tensile strength steel; Stainless steel (optional);
• SWL9.5ton to 250ton;
• SWL is based on 5 times of MBL;
• Finishing: Hot dip galvanized, black tarred painting

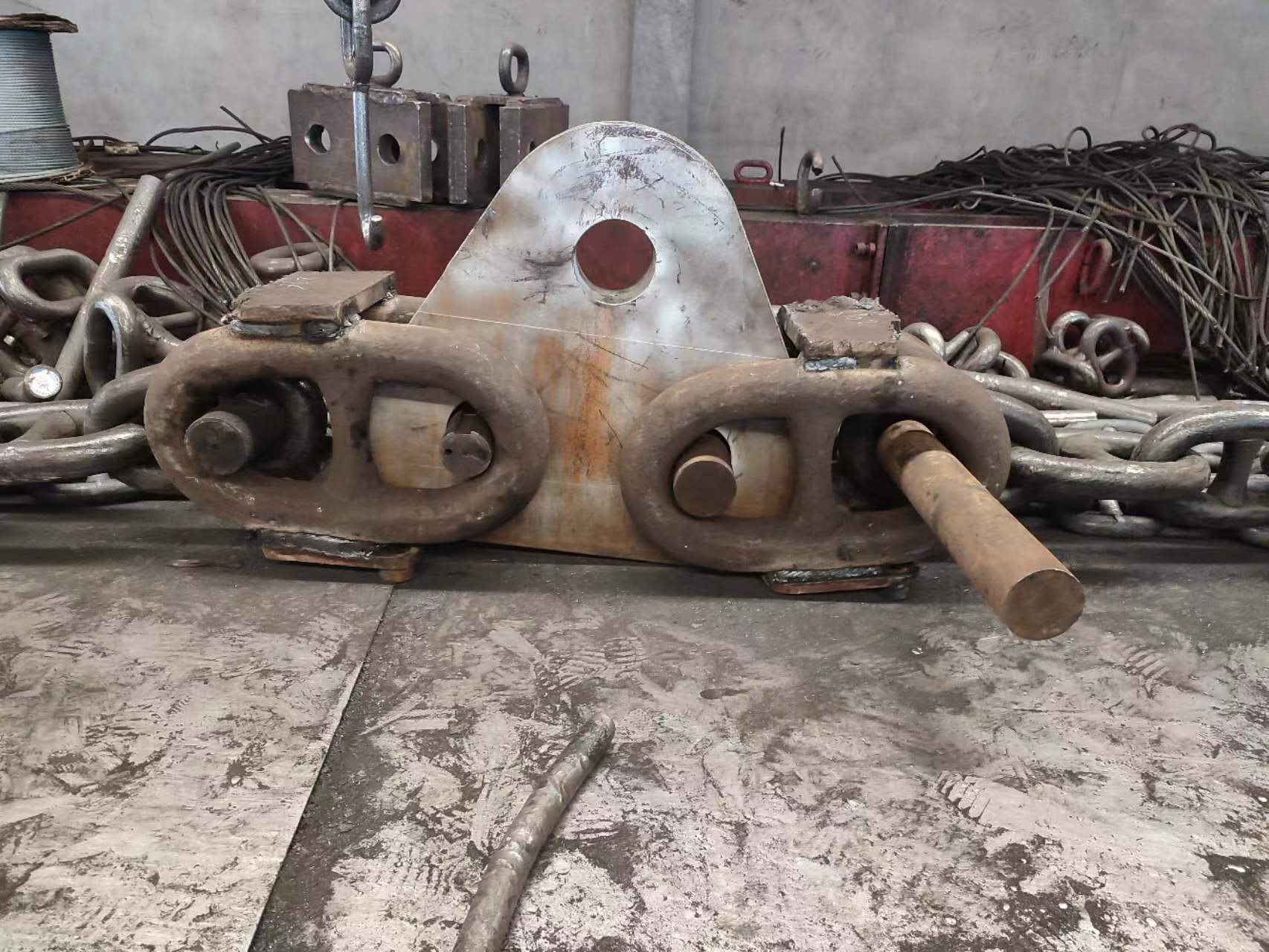

• Application: allows the use of up to three lines from your mooring for redundant protection. Maintains separation of shackles to virtually eliminate line to line interference;
• Certificate: BV, ABS, LRS, DNV, GL, CCS
• Customized service is available


  Size Table





  WLL(T)	MBL(T)	Dimension(mm)				Weight (kgs)
  		A	H	T	S
  9.5	47.5	100	35	40	35	5
  12	60	110	40	40	40	6.5
  13.5	67..5	120	42	45	425	8.5
  17	85	130	45	45	50	9.5
  25	125	140	55	50	65	13.5
  35	175	150	60	60	70	19
  55	275	180	75	80	85	37.5
  85	425	220	90	90	110	62
  120	600	124	105	110	130	95
  150	750	260	115	130	135	133
  175	875	290	115	140	145	163
  200	1000	380	140	150	160	282
